16 ER19BSPTTF PR1115 Grade PVD Carbide, Indexable Threading Insert
$22.23
(No reviews yet)
Write a Review
16 ER19BSPTTF PR1115 Grade PVD Carbide, Indexable Threading Insert
16 ER19BSPTTF PR1115 Grade PVD Carbide, External, 60 Degree Full Profile, Right-Hand Threading Insert for Tapered Pipe [R(PT), (BSPT)] Threads
- Tool Style:
- 16ER
- Insert Size:
- 16
- Chipbreaker:
- TF
- Insert Grade:
- PR1115
- Material:
- Carbide
- Coating Process:
- PVD

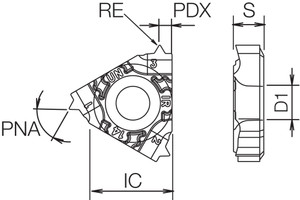

- [IC] Inscribed Circle (mm):
- 9.525
- [S] Thickness (mm):
- 3.68
- [RE] Corner Radius (mm):
- 0.16
- Application:
- External Threading
- Hand:
- Right-Hand
- Thread Type:
- External
- Thread Profile:
- 60 Degree Full Profile
- Thread Pitch (TPI):
- R(PT), (BSPT): 19
- Primary Workpiece Material:
- (P) Steel
- Number of Cutting Edges:
- 3
- Usage Classification:
- Continuous
- Insert Holding Method:
- Screw or Clamp
- Unit (inch/mm):
- inch
- Feature 1:
- Insert for External Threading with 3 Cutting Edges
- Feature 2:
- 60 Degree Full Profile for Tapered Pipe [R(PT), (BSPT)] threads
- Feature 3:
- Hard TiAlN base PVD coated super micro-grain carbide
- Feature 4:
- Application: Superior anti-oxidation performance with well balanced wear resistance and toughness in steel and stainless steel
- ANSI Part Number:
- 16ER19BSPTTFPR1115
- ISO Part Number:
- 16ER19BSPT-TF
- Old Material Number:
- 8829780
- Compatible Toolholder (Partial):
- KTNR...-3, KTNR…-16, KTNSR…-16
- [IC] Inscribed Circle:
- 3/8"
- [S] Thickness:
- 0.145"
- [RE] Corner Radius:
- 0.006"
