16 IR18NPT PR1115 Grade PVD Carbide, Indexable Threading Insert
$40.89
(No reviews yet)
Write a Review
16 IR18NPT PR1115 Grade PVD Carbide, Indexable Threading Insert
16 IR18NPT PR1115 Grade PVD Carbide, Internal, 60 Degree Full Profile, Right-Hand Threading Insert for American National Pipe (NPT) Threads
- Tool Style:
- 16IR
- Insert Size:
- 16
- Insert Grade:
- PR1115
- Material:
- Carbide
- Coating Process:
- PVD

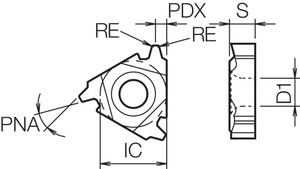

- [IC] Inscribed Circle (mm):
- 9.525
- [S] Thickness (mm):
- 3.68
- [RE] Corner Radius (mm):
- 0.04
- Application:
- Internal Threading
- Hand:
- Right-Hand
- Thread Type:
- Internal
- Thread Profile:
- 60 Degree Full Profile
- Thread Pitch (TPI):
- NPT: 18.0
- Primary Workpiece Material:
- (P) Carbon/Alloy Steel
- Number of Cutting Edges:
- 3
- Usage Classification:
- Continuous
- Insert Holding Method:
- Screw or Clamp
- Unit (inch/mm):
- inch
- Feature 1:
- Insert for Internal Threading with 3 Cutting Edges
- Feature 2:
- 60 Degree Full Profile for American National Pipe (NPT) threads
- Feature 3:
- Hard TiAlN base PVD coated super micro-grain carbide
- Feature 4:
- Application: Superior anti-oxidation performance with well balanced wear resistance and toughness in steel and stainless steel
- ANSI Part Number:
- 16IR18NPTPR1115
- ISO Part Number:
- 16IR18NPT
- Old Material Number:
- 8829851
- Compatible Toolholder (Partial):
- S…SINR-3, SINR…-16, CINR…-16
- [IC] Inscribed Circle:
- 3/8"
- [S] Thickness:
- 0.145"
- [RE] Corner Radius:
- 0.002"
