16ER 6002 TC60 Grade Uncoated Cermet, Indexable Threading Insert

SKU:
TSB01133
|
UPC:
4960664050758
$33.22
(No reviews yet)
Width:
1.77 (in)
Height:
0.39 (in)
Depth:
4.13 (in)
Current Stock:
Adding to cart… The item has been added
16ER 6002 TC60 Grade Uncoated Cermet, External, 60 Degree Partial Profile, Right-Hand Threading Insert for Metric (M), Unified (UN) Threads
Tool Style:
16ER
Insert Size:
16
Insert Grade:
TC60
Material:
Cermet
Coating Process:
Uncoated

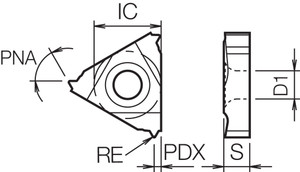

[IC] Inscribed Circle (mm):
9.525
[S] Thickness (mm):
3.68
[RE] Corner Radius (mm):
0.20
Application:
External Threading
Hand:
Right-Hand
Thread Type:
External
Thread Profile:
60 Degree Partial Profile
Thread Pitch (TPI):
UN, UNF: 16-11
Thread Pitch (mm):
M: 1.50-2.50
Primary Workpiece Material:
(P) Carbon/Alloy Steel
Number of Cutting Edges:
3
Usage Classification:
Continuous
Insert Holding Method:
Screw or Clamp
Unit (inch/mm):
inch/mm
Feature 1:
Insert for External Threading with 3 Cutting Edges
Feature 2:
60 Degree Partial Profile for Metric (M), Unified (UN) threads
Feature 3:
Excellent surface finish cermet grade for stable machining
Feature 4:
Application: For milling, grooving, and threading of steel and stainless steel
ANSI Part Number:
16ER6002TC60
ISO Part Number:
16ER6002
US Stock:
10
Worldwide Stock:
210
Old Material Number:
8803403
Compatible Toolholder (Partial):
KTNR...-3, KTNR…-16, KTNSR…-16
[IC] Inscribed Circle:
3/8"
[S] Thickness:
0.145"
[RE] Corner Radius:
0.008"
