16IR 24UN TC60 Grade Uncoated Cermet, Indexable Threading Insert
$33.22
(No reviews yet)
Write a Review
16IR 24UN TC60 Grade Uncoated Cermet, Indexable Threading Insert
16IR 24UN TC60 Grade Uncoated Cermet, Internal, 60 Degree Full Profile, Right-Hand Threading Insert for Unified (UN) Threads
- Tool Style:
- 16IR
- Insert Size:
- 16
- Insert Grade:
- TC60
- Material:
- Cermet
- Coating Process:
- Uncoated

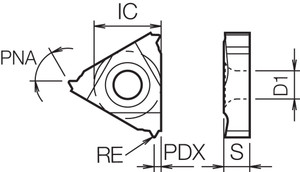

- [IC] Inscribed Circle:
- 3/8"
- [IC] Inscribed Circle (mm):
- 9.525
- [S] Thickness:
- 0.145"
- [S] Thickness (mm):
- 3.68
- [RE] Corner Radius:
- 0.002"
- [RE] Corner Radius (mm):
- 0.05
- Application:
- Internal Threading
- Hand:
- Right-Hand
- Thread Type:
- Internal
- Thread Profile:
- 60 Degree Full Profile
- Thread Pitch (TPI):
- UN, UNF: 24
- Primary Workpiece Material:
- (P) Steel|(M) Stainless Steel
- Number of Cutting Edges:
- 3
- Usage Classification:
- Continuous
- Insert Holding Method:
- Screw or Clamp
- Unit (inch/mm):
- inch
- Feature 1:
- Insert for Internal Threading with 3 Cutting Edges
- Feature 2:
- 60 Degree Full Profile for Unified (UN) threads
- Feature 3:
- Excellent surface finish cermet grade for stable machining
- Feature 4:
- Application: For milling, grooving, and threading of steel and stainless steel
- ANSI Part Number:
- 16IR24UNTC60
- ISO Part Number:
- 16IR24UN
- Old Material Number:
- 8807720
- Compatible Toolholder (Partial):
- S…SINR-3, SINR…-16, CINR…-16
