516 SHCSCB 5/16", Counterbore for Socket Head Cap Screw
$125.02
(No reviews yet)
Write a Review
516 SHCSCB 5/16", Counterbore for Socket Head Cap Screw

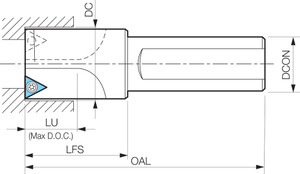

516 SHCSCB 5/16", 1 Flute, 0.5150" Cutting Diameter, Neutral, Counterbore for Socket Head Cap Screw
- Tool Style:
- Counterbore
- Material:
- Steel
- Application:
- Counterboring
- Hand:
- Neutral
- [DCN] Cutting Diameter Minimum (mm):
- 13.08
- [DCX] Cutting Diameter Maximum (mm):
- 13.08
- Number of Inserts:
- 1
- Number of Flutes:
- 1
- Shank Type:
- Standard Length
- Weldon Flat:
- No
- [DCON] Connection Diameter (mm):
- 19.05
- Coolant Through (Yes/No):
- No
- Insert Holding Method:
- Screw
- Unit (inch/mm):
- inch
- SHCS Size:
- [5/16]
- Feature 1:
- Rigid toolholder design for stable counterboring applications
- Feature 2:
- Counterbore for [5/16] Socket Head Cap Screws
- Feature 3:
- Compatible with TCMT 18151HP…, TCMT 18151HQ… inserts
- ANSI Part Number:
- 516SHCSCB
- ISO Part Number:
- 516SHCSCB
- US Stock:
- 0
- Worldwide Stock:
- 0
- Compatible Inserts (Partial):
- TCMT18151HP…, TCMT18151HQ…
- Old Material Number:
- 8600630
- Insert Screw:
- SCR-05
- Wrench (for Insert Screw):
- FT-7
- [DC] Cutting Diameter (Decimal Inch):
- 0.5150
- [DC] Cutting Diameter (mm):
- 13.08
- [DCN] Cutting Diameter Minimum (Decimal Inch):
- 0.5150
- [DCX] Cutting Diameter Maximum (Decimal Inch):
- 0.5150
- [DCON] Connection Diameter (Decimal Inch):
- 0.7500
- [OAL] Overall Length (mm):
- 73.66
- [OAL] Overall Length (Decimal Inch):
- 2.9000
