A05HSCLCR2E Right-Hand, Positive Rake, Coolant-Through Boring Bar

A05HSCLCR2E Right-Hand, Positive Rake, Coolant-Through Boring Bar

SKU:
8801274
$233.17
(No reviews yet)
Width:
1.75 (in)
Height:
1.75 (in)
Depth:
4.00 (in)
Current Stock:
Adding to cart… The item has been added
Description
A05HSCLCR2E Right-Hand, Positive Rake, General Purpose Coolant-Through Boring Bar with 95 Degree Lead Angle and 0.3937" Minimum Bore Dia.
Additional Information
Tool Style:
A...SCLC-E
Material:
Steel
Bar Type:
Excellent Bar
Application:
Boring|Internal Facing
Hand:
Right-Hand
Rake:
Positive

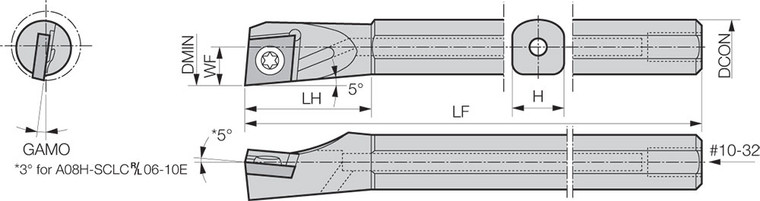

[KAPR] Tool Entering Angle (Degree):
95
Insert Shape:
80 Degree Diamond
[DMIN] Minimum Bore Diameter (mm):
10.00
[H] Shank Height (mm):
7.14
[DCON] Connection Diameter (mm):
7.92
Coolant Through (Yes/No):
Yes
Insert Holding Method:
Screw
Unit (inch/mm):
inch
Feature 1:
~5 (Axial), -12 (Radial) Rake Angle General Purpose Coolant-Through Boring Bar
Feature 2:
Great for Boring, Internal Facing Applications
Feature 3:
Compatible with Left-Hand CCGT215…, CCMT215…, CCET215…, CCGW215…, CCMW215… Inserts
ANSI Part Number:
A05HSCLCR2E
ISO Part Number:
A05HSCLCR2E
US Stock:
0
Worldwide Stock:
0
Compatible Inserts (Partial):
CCGT215…, CCMT215…, CCET215…, CCGW215…, CCMW215…
Old Material Number:
8607435
Insert Screw:
SB-2545TR
Wrench (for Insert Screw):
FT-8
[LF] Functional Length (mm):
101.60
[LH] Head Length (mm):
16.50
Product Notes:
Left-hand Insert for Right-hand Toolholder
[DMIN] Minimum Bore Diameter (Decimal Inch):
0.3937
[H] Shank Height (Decimal Inch):
0.2811
[DCON] Connection Diameter (Decimal Inch):
0.3118
[LF] Functional Length (Decimal Inch):
4.0000
[LH] Head Length (Decimal Inch):
0.6496
