A10MPCLNR3 Right-Hand, Negative Rake, Coolant-Through Boring Bar

A10MPCLNR3 Right-Hand, Negative Rake, Coolant-Through Boring Bar

SKU:
THC89425
|
UPC:
4960664469451
$180.42
(No reviews yet)
Width:
1.38 (in)
Height:
1.14 (in)
Depth:
7.09 (in)
Current Stock:
Adding to cart… The item has been added
Description
A10MPCLNR3 Right-Hand, Negative Rake, General Purpose Coolant-Through Boring Bar with 95 Degree Lead Angle and 0.7900" Minimum Bore Dia.
Additional Information
Tool Style:
A...PCLN
Material:
Steel
Bar Type:
Steel Shank
Application:
Boring|Internal Facing
Hand:
Right-Hand
Rake:
Negative

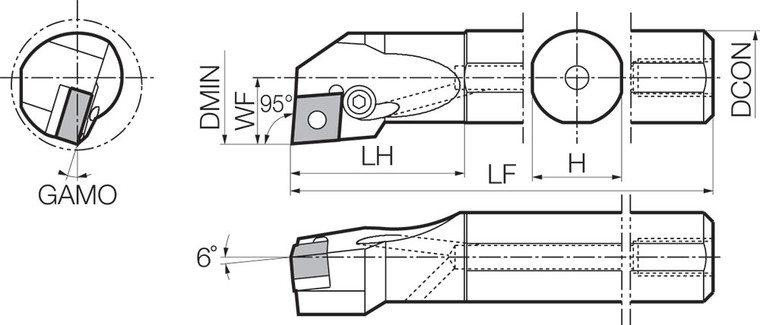

[KAPR] Tool Entering Angle (Degree):
95
Insert Shape:
80 Degree Diamond
[DMIN] Minimum Bore Diameter (mm):
20.00
[H] Shank Height (mm):
14.99
[DCON] Connection Diameter (mm):
16.00
Coolant Through (Yes/No):
Yes
Insert Holding Method:
Lever Lock / Lock Pin
Unit (inch/mm):
inch
Feature 1:
~6 (Axial), -16 (Radial) Rake Angle General Purpose Coolant-Through Boring Bar
Feature 2:
Great for Boring, Internal Facing Applications
Feature 3:
Compatible with Left-Hand CNMG33…, CNGG33… Inserts
ANSI Part Number:
A10MPCLNR3
ISO Part Number:
A10M-PCLNR3
US Stock:
0
Worldwide Stock:
0
Compatible Inserts (Partial):
CNMG33…, CNGG33…
Old Material Number:
8820450
Shim Pin:
P-03S
Lever:
LL-03SN
Lock Screw:
LS-03SN
Wrench (for Lock Screw):
FH-2.5
[LF] Functional Length (mm):
152.40
[LH] Head Length (mm):
34.00
Product Notes:
Left-hand Insert for Right-hand Toolholder
[DMIN] Minimum Bore Diameter (Decimal Inch):
0.7874
[H] Shank Height (Decimal Inch):
0.5902
[DCON] Connection Diameter (Decimal Inch):
0.6299
[LF] Functional Length (Decimal Inch):
6.0000
[LH] Head Length (Decimal Inch):
1.3386
