A10MSCLPR3E Right-Hand, Positive Rake, Coolant-Through Boring Bar

A10MSCLPR3E Right-Hand, Positive Rake, Coolant-Through Boring Bar

SKU:
8801272
$275.59
(No reviews yet)
Width:
1.38 (in)
Height:
1.14 (in)
Depth:
7.09 (in)
Current Stock:
Adding to cart… The item has been added
Description
A10MSCLPR3E Right-Hand, Positive Rake, General Purpose Coolant-Through Boring Bar with 95 Degree Lead Angle and 0.7090" Minimum Bore Dia.
Additional Information
Tool Style:
A...SCLP-E
Material:
Steel
Bar Type:
Excellent Bar
Application:
Boring|Internal Facing
Hand:
Right-Hand
Rake:
Positive

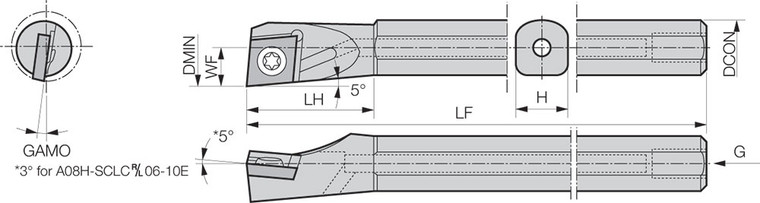

[KAPR] Tool Entering Angle (Degree):
95
Insert Shape:
80 Degree Diamond
[DMIN] Minimum Bore Diameter (mm):
18.00
[H] Shank Height (mm):
14.88
[DCON] Connection Diameter (mm):
15.88
Coolant Through (Yes/No):
Yes
Insert Holding Method:
Screw
Unit (inch/mm):
inch
Feature 1:
~5 (Axial), -3 (Radial) Rake Angle General Purpose Coolant-Through Boring Bar
Feature 2:
Great for Boring, Internal Facing Applications
Feature 3:
Compatible with Left-Hand CPMT32…, CPMH32…, CPMB32…, CPGB32… Inserts
ANSI Part Number:
A10MSCLPR3E
ISO Part Number:
A10MSCLPR3E
Compatible Inserts (Partial):
CPMT32…, CPMH32…, CPMB32…, CPGB32…
Old Material Number:
8607434
Insert Screw:
SB-4TR
Wrench (for Insert Screw):
FT-15
[LF] Functional Length (mm):
152.40
[LH] Head Length (mm):
31.00
Product Notes:
Left-hand Insert for Right-hand Toolholder
[DMIN] Minimum Bore Diameter (Decimal Inch):
0.7087
[H] Shank Height (Decimal Inch):
0.5858
[DCON] Connection Diameter (Decimal Inch):
0.6252
[LF] Functional Length (Decimal Inch):
6.0000
[LH] Head Length (Decimal Inch):
1.2205
