A12MSDZCL0716AE Left-Hand, Positive Rake, Coolant-Through Boring Bar
$227.70
(No reviews yet)
Write a Review
A12MSDZCL0716AE Left-Hand, Positive Rake, Coolant-Through Boring Bar
A12MSDZCL0716AE Left-Hand, Positive Rake, Dynamic Bar Coolant-Through Boring Bar with 93 Degree Lead Angle and 16.00mm Minimum Bore Dia.
- Tool Style:
- A...SDZC-AE
- Material:
- Steel
- Bar Type:
- Excellent Bar
- Application:
- Back Boring
- Hand:
- Left-Hand
- Rake:
- Positive
- [KAPR] Tool Entering Angle (Degree):
- 93
- Insert Shape:
- 55 Degree Diamond
- [DMIN] Minimum Bore Diameter (mm):
- 16.00
- [H] Shank Height (mm):
- 11.00
- [DCON] Connection Diameter (mm):
- 12.00
- Coolant Through (Yes/No):
- Yes
- Insert Holding Method:
- Screw
- Unit (inch/mm):
- mm
- Feature 1:
- Maximum structural thickness for higher toolholder rigidity and controlled chattering for stable machining
- Feature 2:
- Large chip pocket provides superior chip evacuation
- Feature 3:
- Anti-chatter vibration performance
- Feature 4:
- Maintains high cutting edge positional accuracy through the use of a special alloy, thereby achieving high precision machining
- Feature 5:
- 3 (Axial), -5 (Radial) Rake Angle Dynamic Bar Coolant-Through Boring Bar
- ANSI Part Number:
- A12MSDZCL0716AE
- ISO Part Number:
- A12M-SDZCL07-16AE
- US Stock:
- 0
- Worldwide Stock:
- 4
- Compatible Inserts (Partial):
- DCGT215…, DCMX215…, DCMT215…, DCET215…, DCMW215…
- Old Material Number:
- 8827365
- Insert Screw:
- SB-2560TR
- Wrench (for Insert Screw):
- FT-8

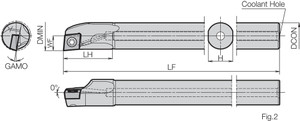

- [LF] Functional Length (mm):
- 150.00
- [LH] Head Length (mm):
- 14.00
- [DMIN] Minimum Bore Diameter (Decimal Inch):
- 0.6299
- [H] Shank Height (Decimal Inch):
- 0.4331
- [DCON] Connection Diameter (Decimal Inch):
- 0.4724
- [LF] Functional Length (Decimal Inch):
- 5.9055
- [LH] Head Length (Decimal Inch):
- 0.5512
