A12QPDUNR3 Right-Hand, Negative Rake, Coolant-Through Boring Bar
$228.59
(No reviews yet)
Write a Review
A12QPDUNR3 Right-Hand, Negative Rake, Coolant-Through Boring Bar
A12QPDUNR3 Right-Hand, Negative Rake, General Purpose Coolant-Through Boring Bar with 93 Degree Lead Angle and 1.0600" Minimum Bore Dia.
- Tool Style:
- A...PDUN3
- Material:
- Steel
- Bar Type:
- Steel Shank
- Application:
- Copying
- Hand:
- Right-Hand
- Rake:
- Negative

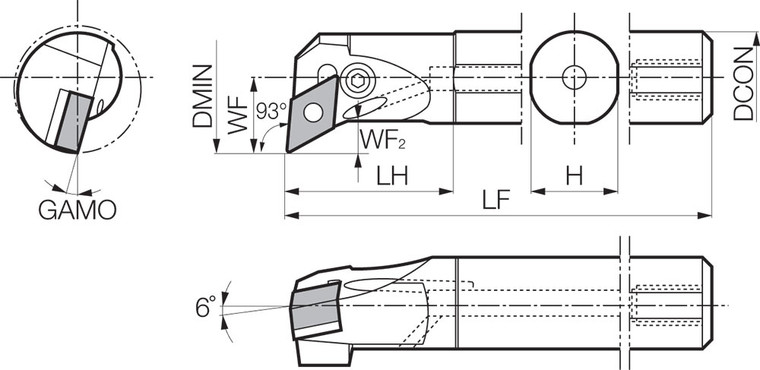

- [KAPR] Tool Entering Angle (Degree):
- 93
- Insert Shape:
- 55 Degree Diamond
- [DMIN] Minimum Bore Diameter (mm):
- 26.92
- [H] Shank Height (mm):
- 18.03
- [DCON] Connection Diameter (mm):
- 19.05
- Coolant Through (Yes/No):
- Yes
- Insert Holding Method:
- Lever Lock / Lock Pin
- Unit (inch/mm):
- inch
- Feature 1:
- ~-17 (Radial) Rake Angle General Purpose Coolant-Through Boring Bar
- Feature 2:
- Great for Copying Applications
- Feature 3:
- Compatible with Left-Hand DNMG33…, DNGG33… Inserts
- ANSI Part Number:
- A12QPDUNR3
- ISO Part Number:
- A12Q-PDUNR3
- US Stock:
- 0
- Worldwide Stock:
- 0
- Compatible Inserts (Partial):
- DNMG33…, DNGG33…
- Old Material Number:
- 8820454
- Shim:
- LD-32
- Shim Pin:
- LSP-1
- Punch:
- PC-1
- Lever:
- LL-1D
- Lock Screw:
- LS-1S
- Wrench (for Lock Screw):
- FH-2.5
- [LF] Functional Length (mm):
- 177.80
- [LH] Head Length (mm):
- 34.80
- Product Notes:
- Left-hand Insert for Right-hand Toolholder
- [DMIN] Minimum Bore Diameter (Decimal Inch):
- 1.0598
- [H] Shank Height (Decimal Inch):
- 0.7098
- [DCON] Connection Diameter (Decimal Inch):
- 0.7500
- [LF] Functional Length (Decimal Inch):
- 7.0000
- [LH] Head Length (Decimal Inch):
- 1.3701
