A16TSDUCR3AE Right-Hand, Positive Rake, Coolant-Through Boring Bar
$310.72
(No reviews yet)
Write a Review
A16TSDUCR3AE Right-Hand, Positive Rake, Coolant-Through Boring Bar
A16TSDUCR3AE Right-Hand, Positive Rake, Dynamic Bar Coolant-Through Boring Bar with 93 Degree Lead Angle and 1.3000" Minimum Bore Dia.

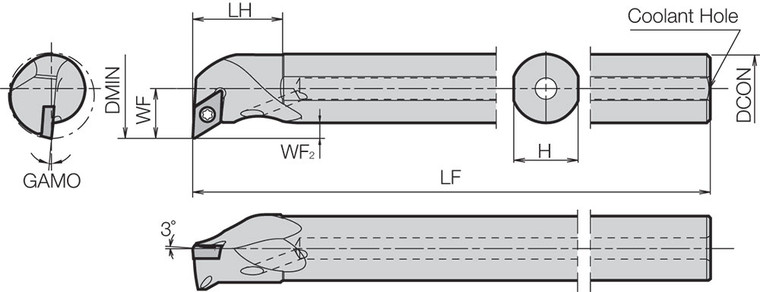

- Tool Style:
- A...SDUC-AE
- Material:
- Steel
- Bar Type:
- Excellent Bar
- Application:
- Copying
- Hand:
- Right-Hand
- Rake:
- Positive
- [KAPR] Tool Entering Angle (Degree):
- 93
- Insert Shape:
- 55 Degree Diamond
- [DMIN] Minimum Bore Diameter (mm):
- 33.02
- [H] Shank Height (mm):
- 24.41
- [DCON] Connection Diameter (mm):
- 25.40
- Coolant Through (Yes/No):
- Yes
- Insert Holding Method:
- Screw
- Unit (inch/mm):
- inch
- Feature 1:
- Maximum structural thickness for higher toolholder rigidity and controlled chattering for stable machining
- Feature 2:
- Large chip pocket provides superior chip evacuation
- Feature 3:
- Anti-chatter vibration performance
- Feature 4:
- Maintains high cutting edge positional accuracy through the use of a special alloy, thereby achieving high precision machining
- Feature 5:
- 3 (Axial), -5 (Radial) Rake Angle Dynamic Bar Coolant-Through Boring Bar
- ANSI Part Number:
- A16TSDUCR3AE
- ISO Part Number:
- A16T-SDUCR3AE
- US Stock:
- 3
- Worldwide Stock:
- 0
- Compatible Inserts (Partial):
- DCGT325…, DCMX325…, DCMT325…, DCET325…, DCMW325…
- Old Material Number:
- 8607627
- Insert Screw:
- SB-4065TR
- Wrench (for Insert Screw):
- FT-15
- [LF] Functional Length (mm):
- 304.80
- [LH] Head Length (mm):
- 24.00
- Product Notes:
- Left-hand Insert for Right-hand Toolholder
- [DMIN] Minimum Bore Diameter (Decimal Inch):
- 1.3000
- [H] Shank Height (Decimal Inch):
- 0.9610
- [DCON] Connection Diameter (Decimal Inch):
- 1.0000
- [LF] Functional Length (Decimal Inch):
- 12.0000
- [LH] Head Length (Decimal Inch):
- 0.9449
