A20SPDUNL3 Left-Hand, Negative Rake, Coolant-Through Boring Bar

A20SPDUNL3 Left-Hand, Negative Rake, Coolant-Through Boring Bar

SKU:
THC89434
|
UPC:
4960664469543
$313.94
(No reviews yet)
Width:
2.13 (in)
Height:
1.97 (in)
Depth:
11.69 (in)
Current Stock:
Adding to cart… The item has been added
Description
A20SPDUNL3 Left-Hand, Negative Rake, General Purpose Coolant-Through Boring Bar with 93 Degree Lead Angle and 1.5700" Minimum Bore Dia.
Additional Information
Tool Style:
A...PDUN3
Material:
Steel
Bar Type:
Steel Shank
Application:
Copying
Hand:
Left-Hand
Rake:
Negative
[KAPR] Tool Entering Angle (Degree):
93
Insert Shape:
55 Degree Diamond
[DMIN] Minimum Bore Diameter (mm):
39.90
[H] Shank Height (mm):
29.97
[DCON] Connection Diameter (mm):
31.75
Coolant Through (Yes/No):
Yes
Insert Holding Method:
Lever Lock / Lock Pin
Unit (inch/mm):
inch
Feature 1:
~-12 (Radial) Rake Angle General Purpose Coolant-Through Boring Bar
Feature 2:
Great for Copying Applications
Feature 3:
Compatible with Right-Hand DNMG33…, DNGG33… Inserts
ANSI Part Number:
A20SPDUNL3
ISO Part Number:
A20S-PDUNL3
US Stock:
0
Worldwide Stock:
0
Compatible Inserts (Partial):
DNMG33…, DNGG33…
Old Material Number:
8820482
Shim:
LD-32
Shim Pin:
LSP-1
Punch:
PC-1
Lever:
LL-1D
Lock Screw:
LS-1S
Wrench (for Lock Screw):
FH-2.5

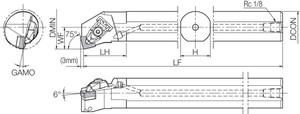

[LF] Functional Length (mm):
254.00
[LH] Head Length (mm):
34.80
Product Notes:
Right-hand Insert for Left-hand Toolholder
[DMIN] Minimum Bore Diameter (Decimal Inch):
1.5709
[H] Shank Height (Decimal Inch):
1.1799
[DCON] Connection Diameter (Decimal Inch):
1.2500
[LF] Functional Length (Decimal Inch):
10.0000
[LH] Head Length (Decimal Inch):
1.3701
