A24U KKCR3, Internal Grooving Toolholder

A24U KKCR3, Internal Grooving Toolholder

SKU:
THT89097
$330.10
(No reviews yet)
Width:
2.00 (in)
Height:
2.00 (in)
Depth:
16.00 (in)
Current Stock:
Adding to cart… The item has been added
Description
A24U-KKCR3, Right-Hand Internal Grooving Holder with a 2.0000" Minimum Bore Diameter for Internal Large Diameter Shallow Grooving Applications
Additional Information
Tool Style:
A…KKC
Material:
Steel
Grooving Type:
Internal Grooving
Application:
Large Diameter Shallow Grooving
Hand:
Right-Hand

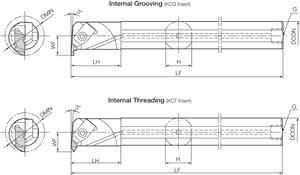

[KAPR] Tool Entering Angle (Degree):
Insert Reliant
[CDX] Max Depth of Cut (mm):
3.80
[CWN] Cutting Width Minimum (mm):
0.79
[CWX] Cutting Width Maximum (mm):
0.79
[DMIN] Minimum Bore Diameter (mm):
50.80
[H] Shank Height (mm):
34.70
[DCON] Connection Diameter (mm):
38.10
Coolant Through (Yes/No):
Yes
Insert Holding Method:
Top Clamp
Unit (inch/mm):
inch
Feature 1:
Right-Hand Toolholder
Feature 2:
Application: Internal Large Diameter Shallow Grooving
Feature 3:
Top Clamp Insert Holding Design
Feature 4:
Compatible with Left-Hand KCFP3…L Inserts
Feature 5:
Universal grooving geometry is easily interchangeable with a wide variety of holders
ANSI Part Number:
A24UKKCR3
ISO Part Number:
A24UKKCR3
US Stock:
0
Worldwide Stock:
0
Compatible Inserts (Partial):
KCFP3…L
Old Material Number:
8604024
Clamp:
CKC-3L
Clamp Screw:
SKC-3
Wrench (for Clamp Screw):
(LW-156)
[LF] Functional Length (mm):
355.60
[LH] Head Length (mm):
44.45
Product Notes:
Left-hand Insert for Right-hand Toolholder
[CW] Cutting Width (Decimal Inch):
0.0311
[CW] Cutting Width (mm):
0.79
[CDX] Max Depth of Cut (Decimal Inch):
0.1496
[CWN] Cutting Width Minimum (Decimal Inch):
0.0311
[CWX] Cutting Width Maximum (Decimal Inch):
0.0311
[DMIN] Minimum Bore Diameter (Decimal Inch):
2.0000
[H] Shank Height (Decimal Inch):
1.3661
[DCON] Connection Diameter (Decimal Inch):
1.5000
[LF] Functional Length (Decimal Inch):
14.0000
[LH] Head Length (Decimal Inch):
1.7500
