A32SPDUNR1140 Right-Hand, Negative Rake, Coolant-Through Boring Bar

A32SPDUNR1140 Right-Hand, Negative Rake, Coolant-Through Boring Bar

SKU:
THC07900
|
UPC:
4960664148585
$459.38
(No reviews yet)
Width:
2.13 (in)
Height:
1.97 (in)
Depth:
11.69 (in)
Current Stock:
Adding to cart… The item has been added
Description
A32SPDUNR1140 Right-Hand, Negative Rake, General Purpose Coolant-Through Boring Bar with 93 Degree Lead Angle and 40.00mm Minimum Bore Dia.
Additional Information
Tool Style:
A...PDUN11
Material:
Steel
Bar Type:
Steel Shank
Application:
Copying
Hand:
Right-Hand
Rake:
Negative

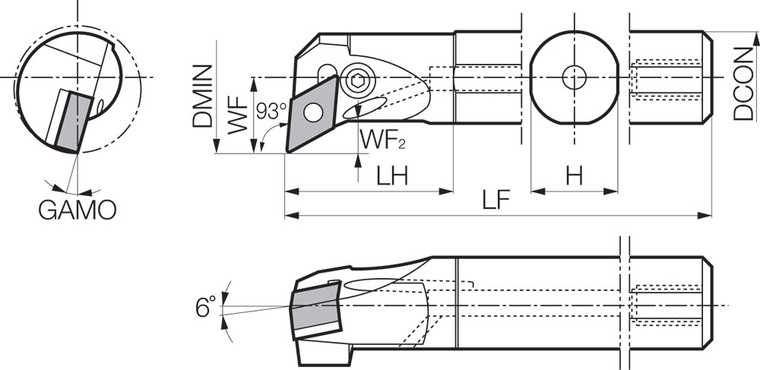

[KAPR] Tool Entering Angle (Degree):
93
Insert Shape:
55 Degree Diamond
[DMIN] Minimum Bore Diameter (mm):
40.00
[H] Shank Height (mm):
31.00
[DCON] Connection Diameter (mm):
32.00
Coolant Through (Yes/No):
Yes
Insert Holding Method:
Lever Lock / Lock Pin
Unit (inch/mm):
mm
Feature 1:
~-12 (Radial) Rake Angle General Purpose Coolant-Through Boring Bar
Feature 2:
Great for Copying Applications
Feature 3:
Compatible with Left-Hand DNMG33…, DNGG33… Inserts
ANSI Part Number:
A32SPDUNR1140
ISO Part Number:
A32S-PDUNR11-40
US Stock:
1
Worldwide Stock:
3
Compatible Inserts (Partial):
DNMG33…, DNGG33…
Old Material Number:
8806533
Shim:
LD-32N
Shim Pin:
LSP-1
Punch:
PC-1
Lever:
LL-1DN
Lock Screw:
LS-1SN
Wrench (for Lock Screw):
FH-2.5
[LF] Functional Length (mm):
250.00
[LH] Head Length (mm):
45.00
Product Notes:
Left-hand Insert for Right-hand Toolholder
[DMIN] Minimum Bore Diameter (Decimal Inch):
1.5748
[H] Shank Height (Decimal Inch):
1.2205
[DCON] Connection Diameter (Decimal Inch):
1.2598
[LF] Functional Length (Decimal Inch):
9.8425
[LH] Head Length (Decimal Inch):
1.7717
