ADJCL 1010JX11FF, Indexable Turning Toolholder

ADJCL 1010JX11FF, Indexable Turning Toolholder

SKU:
THC07049
$98.29
(No reviews yet)
Width:
1.38 (in)
Height:
1.14 (in)
Depth:
5.91 (in)
Current Stock:
Adding to cart… The item has been added
Description
ADJCL 1010JX11FF, Left-Hand, Positive Rake, 93 Degree Lead Angle, Indexable Turning Toolholder for Swiss, External Turning, Copying Applications
Additional Information
Tool Style:
ADJC
Material:
Steel
Application:
Copying|External Turning|Small Parts Machining
Hand:
Left-Hand
Rake:
Positive
[KAPR] Tool Entering Angle (Degree):
93
Insert Shape:
55 Degree Diamond
[H] Shank Height (mm):
10.00
[B] Shank Width (mm):
10.00
Coolant Through (Yes/No):
No
Insert Holding Method:
Anchor Pin
Unit (inch/mm):
mm
Feature 1:
Left-Hand Toolholder
Feature 2:
Application: Swiss, External Turning, Copying
Feature 3:
Back Clamp Insert Holding Design
Feature 4:
Compatible with Left-Hand DCGT325…, DCMX325…, DCMT325…, DCET325…, DCGW325…, DCMW325… Style Inserts
Feature 5:
Easy Insert Replacement; General Use
ANSI Part Number:
ADJCL1010JX11FF
ISO Part Number:
ADJCL1010JX-11FF
Compatible Inserts (Partial):
DCGT325…, DCMX325…, DCMT325…, DCET325…, DCGW325…, DCMW325…
Old Material Number:
8834843
Anchor Pin:
LPF-13
Lock Screw:
HSB4X8L
Wrench (for Lock Screw):
FH-2

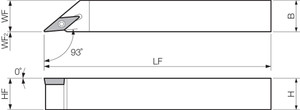

[LF] Functional Length (mm):
120.00
[LH] Head Length (mm):
20.00
[H] Shank Height (Decimal Inch):
0.3937
[B] Shank Width (Decimal Inch):
0.3937
[LF] Functional Length (Decimal Inch):
4.7244
[LH] Head Length (Decimal Inch):
0.7874
