ASL 75100175, Adjustable Sleeve (Drilling) for MAGIC DRILL (DRV / DRZ / DRX)

ASL 75100175, Adjustable Sleeve (Drilling) for MAGIC DRILL (DRV / DRZ / DRX)

SKU:
8800144
|
UPC:
D
$231.32
(No reviews yet)
Width:
3.66 (in)
Height:
3.82 (in)
Depth:
7.56 (in)
Current Stock:
Adding to cart… The item has been added
Description
ASL 75100175, Adjustable Drilling Sleeve with a +0.016" to -0.008" Diameter Adjustable Range for DRV, DRZ, and DRX MAGIC Drills
Additional Information
Tool Style:
AS
Material:
Steel
Application:
Drilling
Hand:
Neutral

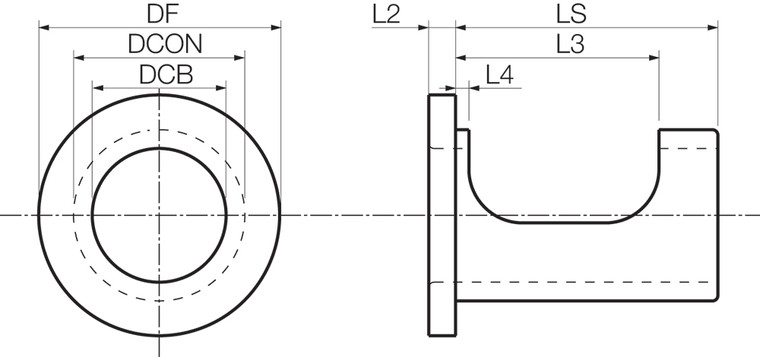

[DCB] Connection Bore Diameter (mm):
19.05
[DCON] Connection Diameter (mm):
25.40
Unit (inch/mm):
inch
Feature 1:
Adjustable Sleeve for DRV, DRZ, and DRX Magic Drills
Feature 2:
+0.016 to -0.008 inch Diameter Adjustment Range
Feature 3:
+0.008 to -0.006 inch Center Height Adjustment Range
ANSI Part Number:
ASL75100175
ISO Part Number:
ASL75100-175
US Stock:
0
Worldwide Stock:
0
Old Material Number:
8800144
Compatible Drill Body (Partial):
DRV, DRZ, DRX
[DCB] Connection Bore Diameter (Decimal Inch):
0.7500
[DCON] Connection Diameter (Decimal Inch):
1.0000
