BDMT 110304ERJS PR1825 Grade PVD Carbide, Indexable Milling Insert

BDMT 110304ERJS PR1825 Grade PVD Carbide, Indexable Milling Insert

SKU:
TLT00032
$19.39
(No reviews yet)
Width:
1.77 (in)
Height:
0.39 (in)
Depth:
4.13 (in)
Current Stock:
Adding to cart… The item has been added
Description
BDMT 110304ERJS PR1825 Grade PVD Carbide, Parallelogram, Positive Rake Angle, Right-Hand Milling Insert for Roughing in (P) Carbon/Alloy Steel, (P) Mold Steel and (M) Austenitic Stainless Steel
Additional Information
Tool Style:
BDMT
Insert Size:
110304
Chipbreaker:
ER-JS
Insert Grade:
PR1825
Material:
Carbide
Coating Process:
PVD

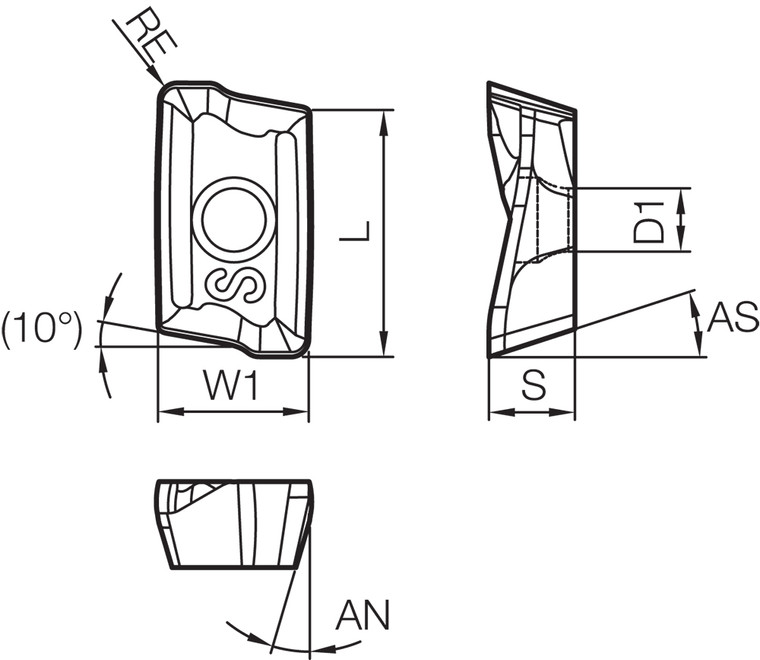

[S] Thickness:
0.118"
[S] Thickness (mm):
3.00
[RE] Corner Radius:
1/64"
[RE] Corner Radius (mm):
0.40
Application:
Facing|Helical Milling|Shouldering|Slotting
Hand:
Right-Hand
Rake:
Positive
Primary Workpiece Material:
(P) Carbon/Alloy Steel|(P) Mold Steel
Insert Shape:
Parallelogram
Number of Cutting Edges:
2
Cutting Range:
Roughing
Insert Holding Method:
Screw
Feature 1:
MEC Milling Insert for Facing, Helical Milling, Shouldering, Slotting
Feature 2:
Honed Edge / Low Cutting Force with 2 Cutting Edges
Feature 3:
Longer tool life with next-generation MEGACOAT NANO EX coating technology designed for milling
Feature 4:
Multi-layer structure with two unique nano layers for superior abrasion resistance and fracture resistance
Feature 5:
Excellent wear resistance oriented grade for steel milling applications
ANSI Part Number:
BDMT110304ERJSPR1825
ISO Part Number:
BDMT110304ER-JS
Compatible Toolholder (Partial):
MEC…-11
