BDMT 11T324ERJT PR1810 Grade PVD Carbide, Indexable Milling Insert

BDMT 11T324ERJT PR1810 Grade PVD Carbide, Indexable Milling Insert

SKU:
TLS00023
$20.91
(No reviews yet)
Width:
1.77 (in)
Height:
0.39 (in)
Depth:
4.13 (in)
Current Stock:
Adding to cart… The item has been added
Description
BDMT 11T324ERJT PR1810 Grade PVD Carbide, Parallelogram, Positive Rake Angle, Right-Hand Milling Insert for Roughing in (K) Gray Cast Iron, (K) Nodular Cast Iron
Additional Information
Tool Style:
BDMT
Insert Size:
11T324
Chipbreaker:
ER-JT
Insert Grade:
PR1810
Material:
Carbide
Coating Process:
PVD

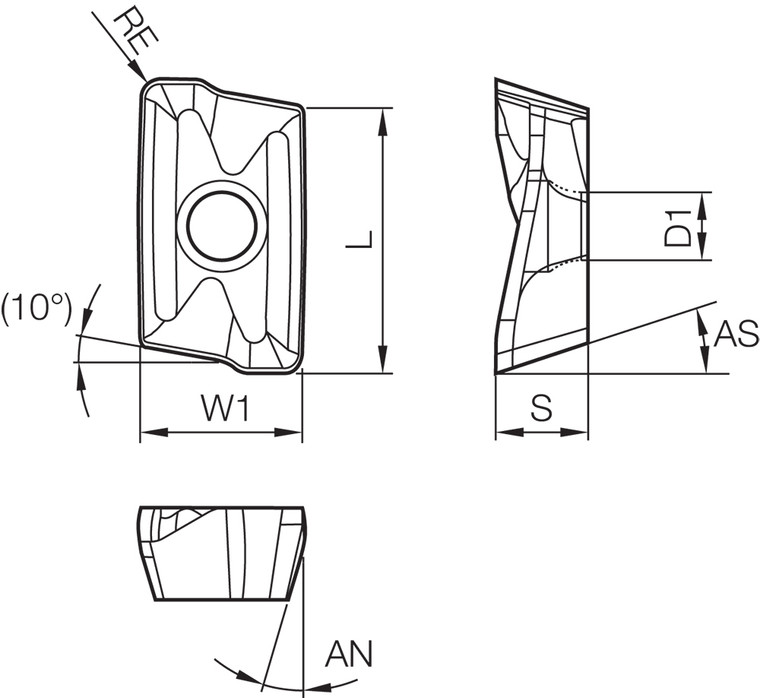

[S] Thickness:
0.150"
[S] Thickness (mm):
3.80
[RE] Corner Radius:
3/32"
[RE] Corner Radius (mm):
2.40
Application:
Facing|Helical Milling|Shouldering|Slotting
Hand:
Right-Hand
Rake:
Positive
Primary Workpiece Material:
(K) Gray Cast Iron|(K) Nodular Cast Iron
Insert Shape:
Parallelogram
Number of Cutting Edges:
2
Cutting Range:
Roughing
Insert Holding Method:
Screw
Feature 1:
MEC Milling Insert for Facing, Helical Milling, Shouldering, Slotting
Feature 2:
Honed Edge with 2 Cutting Edges
Feature 3:
Longer tool life with next-generation MEGACOAT NANO EX coating technology designed for milling
Feature 4:
Multi-layer structure with two unique nano layers for superior abrasion resistance and fracture resistance
Feature 5:
First choice grade for cast iron milling applications
ANSI Part Number:
BDMT11T324ERJTPR1810
ISO Part Number:
BDMT11T324ER-JT
Compatible Toolholder (Partial):
MEC…-11T
Series Description (PeopleSoft):
MEC Milling
Series Description:
MEC Milling
