BDMT 170408ERJS PR1835 Grade PVD Carbide, Indexable Milling Insert

BDMT 170408ERJS PR1835 Grade PVD Carbide, Indexable Milling Insert

SKU:
TLU00044
$23.65
(No reviews yet)
Width:
1.77 (in)
Height:
0.39 (in)
Depth:
4.13 (in)
Current Stock:
Adding to cart… The item has been added
Description
BDMT 170408ERJS PR1835 Grade PVD Carbide, Parallelogram, Positive Rake Angle, Right-Hand Milling Insert for Roughing in (M) Austenitic Stainless Steel, (M) Precipitation Hardened Stainless Steel, (S) Titanium Alloy and (P) Carbon/Alloy Steel, (P) Mold Steel, (M) Martensitic Stainless Steel
Additional Information
Tool Style:
BDMT
Insert Size:
170408
Chipbreaker:
ER-JS
Insert Grade:
PR1835
Material:
Carbide
Coating Process:
PVD

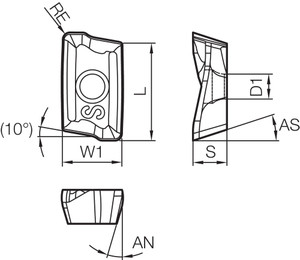

[S] Thickness:
0.193"
[S] Thickness (mm):
4.90
[RE] Corner Radius:
1/32"
[RE] Corner Radius (mm):
0.80
Application:
Facing|Helical Milling|Shouldering|Slotting
Hand:
Right-Hand
Rake:
Positive
Primary Workpiece Material:
(M) Austenitic Stainless Steel|(M) Precipitation Hardened Stainless Steel|(S) Titanium Alloy
Insert Shape:
Parallelogram
Number of Cutting Edges:
2
Cutting Range:
Roughing
Insert Holding Method:
Screw
Feature 1:
MEC Milling Insert for Facing, Helical Milling, Shouldering, Slotting
Feature 2:
Honed Edge / Low Cutting Force with 2 Cutting Edges
Feature 3:
Longer tool life with next-generation MEGACOAT NANO EX coating technology designed for milling
Feature 4:
Multi-layer structure with two unique nano layers for superior abrasion resistance and fracture resistance
Feature 5:
Excellent stability oriented grade for steel and stainless steel milling applications
ANSI Part Number:
BDMT170408ERJSPR1835
ISO Part Number:
BDMT170408ER-JS
Compatible Toolholder (Partial):
MEC…-17
