BX156SET API Ring Groover, Cartridge Set

BX156SET API Ring Groover, Cartridge Set

SKU:
OTM86056
$935.79
(No reviews yet)
Width:
4.25 (in)
Height:
4.25 (in)
Depth:
4.75 (in)
Current Stock:
Adding to cart… The item has been added
Description

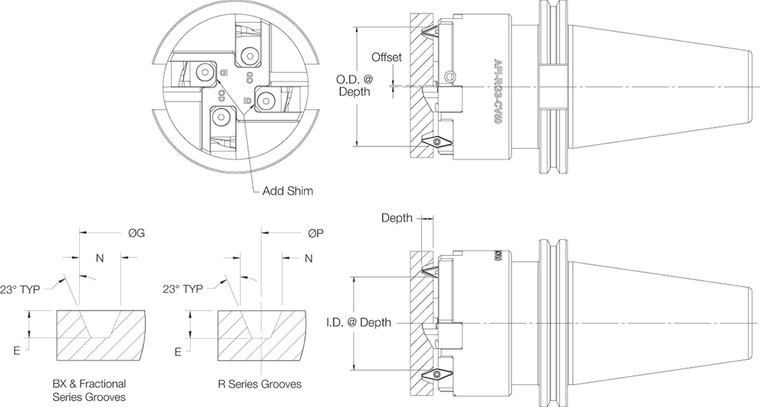

BX156SET API Ring Groover, Cartridge Set for BX-156 Rings, Compatible with VCMT332HQ style inserts and API-RG-4… style holder bodies
Additional Information
Material:
Steel
Application:
Ring Grooving
Number of Inserts:
4
Number of Flutes:
2
Insert Holding Method:
Screw
Unit (inch/mm):
inch
Ring Groove Specification:
BX-156
Spare Part Type:
Cartridge Set
Feature 1:
Create ring grooves per API Spec 6A for BX, R, and RX style grooves
Feature 2:
Roughout and finish of inlay of API Ring Grooves
Feature 3:
Replaceable cartridges allow a single cutter body to produce multiple size API grooves
Feature 4:
Integral shank, multiple sizes and styles available
Feature 5:
Compatible Holders: API-RG-4-CV50, API-RG-4-BT50, API-RG-4-DIN-69871
ANSI Part Number:
BX156SET
ISO Part Number:
BX156SET
US Stock:
4
Worldwide Stock:
0
Compatible Inserts (Partial):
VCMT332HQ
Old Material Number:
8600662
Insert Screw:
SCR-02
Wrench (for Insert Screw):
T15
Compatible Body (Partial):
API-RG-4…
