CBSNR2525B12A20 Right-Hand, Negative Rake, Square Shank Boring Bar for Bearing and Internal Corner Filleting

CBSNR2525B12A20 Right-Hand, Negative Rake, Square Shank Boring Bar for Bearing and Internal Corner Filleting

SKU:
THC01060
|
UPC:
4960664005215
$267.28
(No reviews yet)
Width:
1.97 (in)
Height:
1.73 (in)
Depth:
7.13 (in)
Current Stock:
Adding to cart… The item has been added
Description
CBSNR2525B12A20 Right-Hand, Negative Rake, Square Shank Boring Bar for Bearing and Internal Corner Filleting with a 20.00mm Minimum Bore Diameter and a 25.00mm Square Shank
Additional Information
Tool Style:
CBSN…B
Material:
Steel
Application:
Bearing Machining|Internal Corner Filleting
Hand:
Right-Hand
Rake:
Negative
[KAPR] Tool Entering Angle (Degree):
n/a
Insert Shape:
90 Degree Square

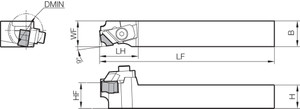

[DMIN] Minimum Bore Diameter (mm):
20.00
[H] Shank Height (mm):
25.00
[B] Shank Width (mm):
25.00
Insert Holding Method:
Top Clamp
Unit (inch/mm):
mm
Feature 1:
Great for Bearing and Internal Corner Filleting
Feature 2:
Metric Size
Feature 3:
Compatible with SNMF120406-21, SNMF120410-21, SNMF120416-21, SNMF120421-21, SNMF120426-21 inserts
ANSI Part Number:
CBSNR2525B12A20
ISO Part Number:
CBSNR2525B-12-A20
US Stock:
0
Worldwide Stock:
0
Compatible Inserts (Partial):
SNMF…-21
Old Material Number:
8816687
Clamp Set:
CP-RCR
Wrench (for Clamp Screw):
LW-5
[LF] Functional Length (mm):
150.00
[LH] Head Length (mm):
32.00
[DMIN] Minimum Bore Diameter (Decimal Inch):
0.7874
[H] Shank Height (Decimal Inch):
0.9843
[B] Shank Width (Decimal Inch):
0.9843
[LF] Functional Length (Decimal Inch):
5.9055
[LH] Head Length (Decimal Inch):
1.2598
