CCLNR 2020K12, Indexable Turning Toolholder
$103.61
(No reviews yet)
Write a Review
CCLNR 2020K12, Indexable Turning Toolholder
CCLNR 2020K12, Right-Hand, Negative Rake, 95 Degree Lead Angle, Indexable Turning Toolholder for External Turning, Facing Applications
- Tool Style:
- CCLN
- Material:
- Steel
- Application:
- External Turning|Facing
- Hand:
- Right-Hand
- Rake:
- Negative
- [KAPR] Tool Entering Angle (Degree):
- 95
- Insert Shape:
- 80 Degree Diamond
- [H] Shank Height (mm):
- 20.00
- [B] Shank Width (mm):
- 20.00
- Coolant Through (Yes/No):
- No
- Insert Holding Method:
- Top Clamp
- Unit (inch/mm):
- mm
- Feature 1:
- Right-Hand Toolholder
- Feature 2:
- Application: External Turning, Facing
- Feature 3:
- Top Clamp Insert Holding Design
- Feature 4:
- Compatible with Right-Hand CNG45…, CNM45… Style Inserts
- Feature 5:
- Rigid Clamping; Negative Insert: Medium to Heavy Machining (Mainly for Ceramic Inserts); Positive Insert: Low Cutting Force
- ANSI Part Number:
- CCLNR2020K12
- ISO Part Number:
- CCLNR2020K-12
- US Stock:
- 8
- Worldwide Stock:
- 2
- Compatible Inserts (Partial):
- CNG45…, CNM45…
- Old Material Number:
- 8816901
- Clamp Set:
- CE-010
- Shim:
- SP-441*
- Shim Screw:
- M3X8*
- Chipbreaker Attachment:
- CB-16
- Wrench (for Clamp Screw):
- LW-4

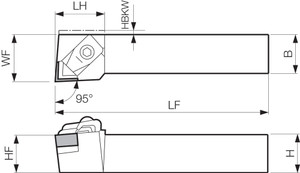

- [LF] Functional Length (mm):
- 125.00
- [LH] Head Length (mm):
- 32.00
- Product Notes 1:
- *Use SP-443 shim and M3X12 shim screw (sold separately) if using CN..43 type inserts with different thickness.
- [H] Shank Height (Decimal Inch):
- 0.7874
- [B] Shank Width (Decimal Inch):
- 0.7874
- [LF] Functional Length (Decimal Inch):
- 4.9213
- [LH] Head Length (Decimal Inch):
- 1.2598
