CD0938XL, Coremaster CoreDrill 0.9380" Cutting Diameter, Indexable Insert Drill

CD0938XL, Coremaster CoreDrill 0.9380" Cutting Diameter, Indexable Insert Drill

SKU:
OTM86064
$431.51
(No reviews yet)
Width:
2.00 (in)
Height:
2.00 (in)
Depth:
6.00 (in)
Current Stock:
Adding to cart… The item has been added
Description
CD0938XL, Coremaster CoreDrill 0.9380" Cutting Diameter, 1.0000" Shank Diameter, Coolant-Through Indexable Insert Drill
Additional Information
Tool Style:
CD-XL
Material:
Steel
Application:
Drilling
Hand:
Right-Hand

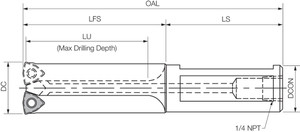

[DCN] Cutting Diameter Minimum (mm):
23.83
[DCX] Cutting Diameter Maximum (mm):
23.83
Drill Depth by Diameter Ratio:
n/a
[LU] Usable Length (mm):
63.50
Number of Inserts:
2
Number of Flutes:
2
Shank Type:
Standard Length
Weldon Flat:
Yes
[DCON] Connection Diameter (mm):
25.40
[DCSFMS] Contact Surface Diameter Machine Side (mm):
34.93
Coolant Through (Yes/No):
Yes
Insert Holding Method:
Screw
Unit (inch/mm):
inch
Feature 1:
Fast and Effective way to Expand Pre-Existing Holes
Feature 2:
Superior Fracture Resistance and Long Tool Life with MEGACOAT Coating Technology
Feature 3:
Two Effective Flutes Allow High Feed Rates for Improved Productivity
ANSI Part Number:
CD0938XL
ISO Part Number:
CD0938XL
US Stock:
0
Worldwide Stock:
0
Compatible Inserts (Partial):
WCMX050308-M1…, WCMX050308-M1A…
Old Material Number:
8600670
Insert Screw:
SCR-03
Wrench (for Insert Screw):
T9
[DC] Cutting Diameter (Decimal Inch):
0.9382
[DC] Cutting Diameter (mm):
23.83
[DCN] Cutting Diameter Minimum (Decimal Inch):
0.9382
[DCX] Cutting Diameter Maximum (Decimal Inch):
0.9382
[LU] Usable Length (Decimal Inch):
2.5000
[DCON] Connection Diameter (Decimal Inch):
1.0000
[DCSFMS] Contact Surface Diameter Machine Side (Decimal Inch):
1.3752
[LS] Shank Length (mm):
57.91
[LS] Shank Length (Decimal Inch):
2.2799
[OAL] Overall Length (mm):
146.81
[OAL] Overall Length (Decimal Inch):
5.7799
