CD0990XL, Coremaster CoreDrill 0.9900" Cutting Diameter, Indexable Insert Drill
$431.51
(No reviews yet)
Write a Review
CD0990XL, Coremaster CoreDrill 0.9900" Cutting Diameter, Indexable Insert Drill
CD0990XL, Coremaster CoreDrill 0.9900" Cutting Diameter, 1.0000" Shank Diameter, Coolant-Through Indexable Insert Drill
- Tool Style:
- CD-XL
- Material:
- Steel
- Application:
- Drilling
- Hand:
- Right-Hand

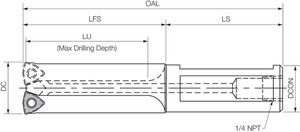

- [DCN] Cutting Diameter Minimum (mm):
- 25.15
- [DCX] Cutting Diameter Maximum (mm):
- 25.15
- Drill Depth by Diameter Ratio:
- n/a
- [LU] Usable Length (mm):
- 63.50
- Number of Inserts:
- 2
- Number of Flutes:
- 2
- Shank Type:
- Standard Length
- Weldon Flat:
- Yes
- [DCON] Connection Diameter (mm):
- 25.40
- [DCSFMS] Contact Surface Diameter Machine Side (mm):
- 34.93
- Coolant Through (Yes/No):
- Yes
- Insert Holding Method:
- Screw
- Unit (inch/mm):
- inch
- Feature 1:
- Fast and Effective way to Expand Pre-Existing Holes
- Feature 2:
- Superior Fracture Resistance and Long Tool Life with MEGACOAT Coating Technology
- Feature 3:
- Two Effective Flutes Allow High Feed Rates for Improved Productivity
- ANSI Part Number:
- CD0990XL
- ISO Part Number:
- CD0990XL
- US Stock:
- 0
- Worldwide Stock:
- 0
- Compatible Inserts (Partial):
- WCMX050308-M1…, WCMX050308-M1A…
- Old Material Number:
- 8600672
- Insert Screw:
- SCR-03
- Wrench (for Insert Screw):
- T9
- [DC] Cutting Diameter (Decimal Inch):
- 0.9902
- [DC] Cutting Diameter (mm):
- 25.15
- [DCN] Cutting Diameter Minimum (Decimal Inch):
- 0.9902
- [DCX] Cutting Diameter Maximum (Decimal Inch):
- 0.9902
- [LU] Usable Length (Decimal Inch):
- 2.5000
- [DCON] Connection Diameter (Decimal Inch):
- 1.0000
- [DCSFMS] Contact Surface Diameter Machine Side (Decimal Inch):
- 1.3752
- [LS] Shank Length (mm):
- 57.91
- [LS] Shank Length (Decimal Inch):
- 2.2799
- [OAL] Overall Length (mm):
- 146.81
- [OAL] Overall Length (Decimal Inch):
- 5.7799
