CD2960C, Coremaster CoreDrill 2.9598-3.0598" Cutting Diameter, Indexable Insert Drill
$828.22
(No reviews yet)
Write a Review
CD2960C, Coremaster CoreDrill 2.9598-3.0598" Cutting Diameter, Indexable Insert Drill
CD2960C, Coremaster CoreDrill 2.9598-3.0598" Cutting Diameter, 1.5000" Shank Diameter, Coolant-Through Indexable Insert Drill
- Tool Style:
- CD-C
- Material:
- Steel
- Application:
- Drilling
- Hand:
- Right-Hand

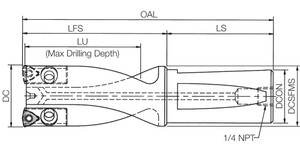

- [DCN] Cutting Diameter Minimum (mm):
- 75.18
- [DCX] Cutting Diameter Maximum (mm):
- 77.72
- Drill Depth by Diameter Ratio:
- n/a
- [LU] Usable Length (mm):
- 79.38
- Number of Inserts:
- 2
- Number of Flutes:
- 2
- Shank Type:
- Standard Length
- Weldon Flat:
- Yes
- [DCON] Connection Diameter (mm):
- 38.10
- Coolant Through (Yes/No):
- Yes
- Insert Holding Method:
- Screw
- Unit (inch/mm):
- inch
- Feature 1:
- Fast and Effective way to Expand Pre-Existing Holes
- Feature 2:
- Superior Fracture Resistance and Long Tool Life with MEGACOAT Coating Technology
- Feature 3:
- Two Effective Flutes Allow High Feed Rates for Improved Productivity
- Feature 4:
- Coremaster Coredrill available in both Fixed Pocket and Adjustable Cartridge
- Feature 5:
- Adjustable cartridges can be adjusted 0.075" per side, providing 0.150" adjustment capability on diameter
- ANSI Part Number:
- CD2960C
- ISO Part Number:
- CD2960C
- US Stock:
- 0
- Worldwide Stock:
- 0
- Compatible Inserts (Partial):
- WCMX050308-M1…, WCMX050308-M1A…
- Old Material Number:
- 8600710
- Insert Screw:
- SCR-30
- Cartridge:
- 02-03
- Cartridge Screw:
- 01-02
- Wrench (for Insert Screw):
- T10
- [DC] Cutting Diameter (Decimal Inch):
- 2.9598 - 3.0598
- [DC] Cutting Diameter (mm):
- 75.18 - 77.72
- [DCN] Cutting Diameter Minimum (Decimal Inch):
- 2.9598
- [DCX] Cutting Diameter Maximum (Decimal Inch):
- 3.0598
- [LU] Usable Length (Decimal Inch):
- 3.1252
- [DCON] Connection Diameter (Decimal Inch):
- 1.5000
- [LS] Shank Length (mm):
- 76.20
- [LS] Shank Length (Decimal Inch):
- 3.0000
- [OAL] Overall Length (mm):
- 177.80
- [OAL] Overall Length (Decimal Inch):
- 7.0000
