CEM 03751W Standard Length Shank, 90 Degree End Mill

CEM 03751W Standard Length Shank, 90 Degree End Mill

SKU:
THN89133
$115.14
(No reviews yet)
Width:
1.50 (in)
Height:
1.50 (in)
Depth:
3.50 (in)
Current Stock:
Adding to cart… The item has been added
Description
CEM 03751W Standard Length, Cylindrical Shank, 1 Flute, 90 Degree End Mill with a 0.3750" Cutting Diameter for Shouldering, Facing, Slotting Applications
Additional Information
Tool Style:
CEM
Material:
Steel
Application:
Facing|Shouldering|Slotting
Hand:
Right-Hand
[KAPR] Tool Entering Angle (Degree):
90
[DCN] Cutting Diameter Minimum (mm):
9.53
[DCX] Cutting Diameter Maximum (mm):
9.53
[APMX] Maximum Depth of Cut (Decimal Inch):
0.3740
[APMX] Maximum Depth of Cut (mm):
9.50
Number of Inserts:
1
Number of Flutes:
1
Shank Type:
Standard Length
Weldon Flat:
No
[DCON] Connection Diameter (mm):
9.53
Coolant Through (Yes/No):
No
Insert Holding Method:
Screw
Unit (inch/mm):
inch
Feature 1:
Right-Hand, Standard Length, 90 Lead Angle End Mill
Feature 2:
Shouldering, Facing, Slotting Applications
Feature 3:
Compatible with NDCT831FR, NDCT831R-B, NDCT832R-B, NDMM831ER-SP Inserts
ANSI Part Number:
CEM03751W
ISO Part Number:
CEM03751W
Compatible Inserts (Partial):
NDCT831FR, NDCT831R-B, NDCT832R-B, NDMM831ER-SP
Old Material Number:
8603968
Insert Screw:
SB-2545TR
Wrench (for Insert Screw):
FT-8

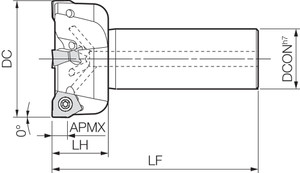

[LF] Functional Length (mm):
78.23
[LH] Head Length (mm):
19.05
[DC] Cutting Diameter (Decimal Inch):
0.3752
[DC] Cutting Diameter (mm):
9.53
[DCN] Cutting Diameter Minimum (Decimal Inch):
0.3752
[DCX] Cutting Diameter Maximum (Decimal Inch):
0.3752
[DCON] Connection Diameter (Decimal Inch):
0.3752
[LF] Functional Length (Decimal Inch):
3.0799
[LH] Head Length (Decimal Inch):
0.7500
