CINL 3025S16, Indexable Internal Threading Toolholder

CINL 3025S16, Indexable Internal Threading Toolholder

SKU:
THC04105
|
UPC:
4960664126606
$257.25
(No reviews yet)
Width:
1.97 (in)
Height:
1.77 (in)
Depth:
9.92 (in)
Current Stock:
Adding to cart… The item has been added
Description
CINL 3025S16, Left-Hand, Indexable Internal Threading Toolholder with a 30.00mm Minimum Bore Diameter for Internal Threading Applications
Additional Information
Tool Style:
CIN
Material:
Steel
Application:
Internal Threading
Hand:
Left-Hand
Thread Type:
Internal

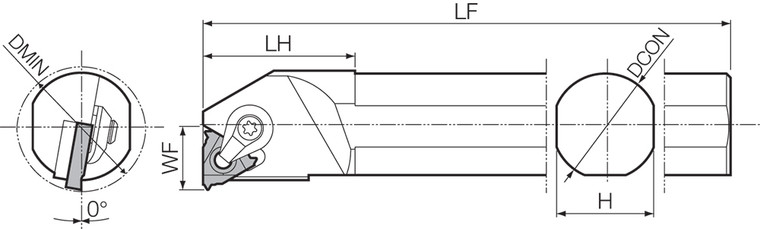

[DMIN] Minimum Bore Diameter (mm):
30.00
[H] Shank Height (mm):
23.00
[DCON] Connection Diameter (mm):
25.00
Coolant Through (Yes/No):
No
Insert Holding Method:
Clamp Set
Unit (inch/mm):
mm
Feature 1:
Left-Hand Toolholder for Internal Threading
Feature 2:
Minimum Bore Diameter 30.00mm
Feature 3:
Compatible with Left-Hand, 16IL… inserts
ANSI Part Number:
CINL3025S16
ISO Part Number:
CINL3025S-16
US Stock:
0
Worldwide Stock:
2
Compatible Inserts (Partial):
16IL…
Old Material Number:
8817019
Clamp Set:
CPS-5S
Shim:
TN-32
Shim Screw:
SP3X8
Wrench (for Clamp Screw):
FT-15
[LF] Functional Length (mm):
200.00
[LH] Head Length (mm):
36.00
[DMIN] Minimum Bore Diameter (Decimal Inch):
1.1811
[H] Shank Height (Decimal Inch):
0.9055
[DCON] Connection Diameter (Decimal Inch):
0.9843
[LF] Functional Length (Decimal Inch):
7.8740
[LH] Head Length (Decimal Inch):
1.4173
