CINR 3732S22, Indexable Internal Threading Toolholder

CINR 3732S22, Indexable Internal Threading Toolholder

SKU:
THC04095
|
UPC:
4960664043163
$310.72
(No reviews yet)
Width:
2.13 (in)
Height:
1.97 (in)
Depth:
11.69 (in)
Current Stock:
Adding to cart… The item has been added
Description
CINR 3732S22, Right-Hand, Indexable Internal Threading Toolholder with a 37.00mm Minimum Bore Diameter for Internal Threading Applications
Additional Information
Tool Style:
CIN
Material:
Steel
Application:
Internal Threading
Hand:
Right-Hand
Thread Type:
Internal

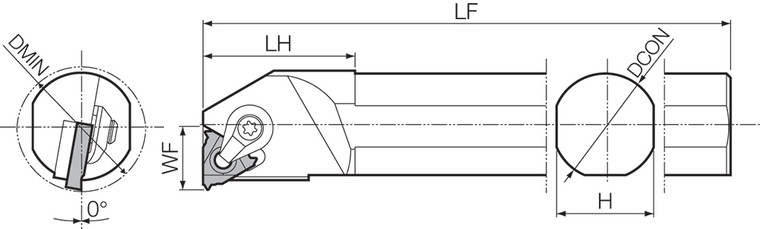

[DMIN] Minimum Bore Diameter (mm):
37.00
[H] Shank Height (mm):
30.00
[DCON] Connection Diameter (mm):
32.00
Coolant Through (Yes/No):
No
Insert Holding Method:
Clamp Set
Unit (inch/mm):
mm
Feature 1:
Right-Hand Toolholder for Internal Threading
Feature 2:
Minimum Bore Diameter 37.00mm
Feature 3:
Compatible with Right-Hand, 22IR… inserts
ANSI Part Number:
CINR3732S22
ISO Part Number:
CINR3732S-22
US Stock:
1
Worldwide Stock:
2
Compatible Inserts (Partial):
22IR…
Old Material Number:
8817021
Clamp Set:
CPS-6S
Shim:
TN-43
Shim Screw:
SP3X8
Wrench (for Clamp Screw):
LW-3
[LF] Functional Length (mm):
250.00
[LH] Head Length (mm):
45.00
[DMIN] Minimum Bore Diameter (Decimal Inch):
1.4567
[H] Shank Height (Decimal Inch):
1.1811
[DCON] Connection Diameter (Decimal Inch):
1.2598
[LF] Functional Length (Decimal Inch):
9.8425
[LH] Head Length (Decimal Inch):
1.7717
