CNGA 432T00425AA KA30 Grade Ceramic, Indexable Turning Insert
$15.20
(No reviews yet)
Write a Review
CNGA 432T00425AA KA30 Grade Ceramic, Indexable Turning Insert
CNGA 432T00425AA KA30 Grade Ceramic, 0 Degree, Diamond, Negative Rake Angle, Neutral Turning Insert for Continuous and Finishing in (K) Gray Cast Iron
- Tool Style:
- CNGA
- Insert Size:
- 432
- Insert Grade:
- KA30
- Material:
- Ceramic
- Coating Process:
- Uncoated

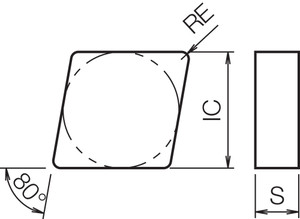

- [IC] Inscribed Circle (mm):
- 12.70
- [S] Thickness (mm):
- 4.76
- [RE] Corner Radius (mm):
- 0.80
- Application:
- Boring|External Turning|Facing|Internal Facing
- Hand:
- Neutral
- Rake:
- Negative
- [EPSR] Insert Included Angle (Degree):
- 80
- Primary Workpiece Material:
- (K) Gray Cast Iron
- Insert Shape:
- 80 Degree Diamond
- Number of Cutting Edges:
- 4
- Usage Classification:
- Continuous
- Cutting Range:
- Finishing
- Insert Holding Method:
- Screw or Clamp
- Feature 1:
- Insert for External Turning, Facing, Boring, Internal Facing
- Feature 2:
- 4 Cutting Edges
- Feature 3:
- Aluminum Oxide ceramic (Al2O3)
- Feature 4:
- Application: Finishing of cast iron at high cutting speeds without coolant
- ANSI Part Number:
- CNGA432T00425AAKA30
- ISO Part Number:
- CNGA120408S01025
- US Stock:
- 10
- Worldwide Stock:
- 0
- Old Material Number:
- 8809223
- Compatible Toolholder (Partial):
- Please Refer to Catalog for Compatible Toolholders
- [IC] Inscribed Circle:
- 1/2"
- [S] Thickness:
- 3/16"
- [RE] Corner Radius:
- 1/32"
