CNGA 433S00515MEW KBN010 Grade CBN, Indexable Turning Insert

CNGA 433S00515MEW KBN010 Grade CBN, Indexable Turning Insert

SKU:
TFD00126
$86.42
(No reviews yet)
Width:
1.69 (in)
Height:
0.43 (in)
Depth:
2.36 (in)
Current Stock:
Adding to cart… The item has been added
Description
CNGA 433S00515MEW KBN010 Grade CBN, 80 Degree Diamond, Negative Rake Angle, Neutral Turning Insert for Continuous Machining of (H) Hardened Materials
Additional Information
Tool Style:
CNGA
Insert Size:
433
Insert Grade:
KBN010
Material:
CBN
Coating Process:
PVD

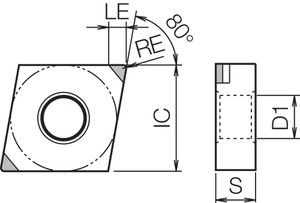

[IC] Inscribed Circle:
1/2"
[IC] Inscribed Circle (mm):
12.70
[S] Thickness:
3/16"
[S] Thickness (mm):
4.76
[RE] Corner Radius:
3/64"
[RE] Corner Radius (mm):
1.20
[LE] CBN/PCD Tip Length (Decimal Inch):
0.0984
[LE] CBN/PCD Tip Length (mm):
2.50
Application:
Boring|External Turning|Facing|Internal Facing
Hand:
Neutral
Rake:
Negative
[EPSR] Insert Included Angle (Degree):
80
Primary Workpiece Material:
(H) Hardened Materials
Insert Shape:
80 Degree Diamond
Number of Cutting Edges:
2
Usage Classification:
Continuous
Cutting Range:
Finishing-Medium
Insert Holding Method:
Screw or Clamp
ANSI Part Number:
CNGA433S00515MEWKBN010
ISO Part Number:
CNGA120412S01215MEW
Compatible Toolholder (Partial):
Please Refer to Catalog for Compatible Toolholders
