CRDNN 3225P09A, Indexable Turning Toolholder

CRDNN 3225P09A, Indexable Turning Toolholder

SKU:
THA00560
|
UPC:
4960664003891
$228.82
(No reviews yet)
Width:
1.97 (in)
Height:
1.97 (in)
Depth:
14.17 (in)
Current Stock:
Adding to cart… The item has been added
Description
CRDNN 3225P09A, Neutral, Negative Rake, Indexable Turning Toolholder for External Turning, Copying Applications
Additional Information
Tool Style:
CRDN-A
Material:
Steel
Application:
Copying|External Turning
Hand:
Neutral
Rake:
Negative
[KAPR] Tool Entering Angle (Degree):
n/a
Insert Shape:
Round
[H] Shank Height (mm):
32.00
[B] Shank Width (mm):
25.00
Coolant Through (Yes/No):
No
Insert Holding Method:
Top Clamp
Unit (inch/mm):
mm
Feature 1:
Neutral Toolholder
Feature 2:
Application: External Turning, Copying
Feature 3:
Top Clamp Insert Holding Design
Feature 4:
Compatible with Neutral RNM32… Style Inserts
Feature 5:
Rigid Clamping
ANSI Part Number:
CRDNN3225P09A
ISO Part Number:
CRDNN3225P-09A
US Stock:
5
Worldwide Stock:
1
Compatible Inserts (Partial):
RNM32…
Old Material Number:
8806242
Clamp Set:
CE-030A
Shim:
SP-829*
Shim Screw:
HH3X12
Wrench (for Clamp Screw):
LW-4

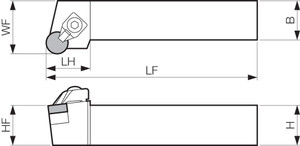

[LF] Functional Length (mm):
170.00
[LH] Head Length (mm):
29.00
Product Notes 1:
*If using RN…33 Ceramic inserts, use SP-826 shim (sold separately).
[H] Shank Height (Decimal Inch):
1.2598
[B] Shank Width (Decimal Inch):
0.9843
[LF] Functional Length (Decimal Inch):
6.6929
[LH] Head Length (Decimal Inch):
1.1417
