CRSNR 2525M09A, Indexable Turning Toolholder

CRSNR 2525M09A, Indexable Turning Toolholder

SKU:
THA00541
|
UPC:
4960664003808
$196.99
(No reviews yet)
Width:
1.97 (in)
Height:
1.73 (in)
Depth:
7.13 (in)
Current Stock:
Adding to cart… The item has been added
Description
CRSNR 2525M09A, Right-Hand, Negative Rake, Indexable Turning Toolholder for External Turning, Facing Applications
Additional Information
Tool Style:
CRSN-A
Material:
Steel
Application:
External Turning|Facing
Hand:
Right-Hand
Rake:
Negative
[KAPR] Tool Entering Angle (Degree):
n/a
Insert Shape:
Round

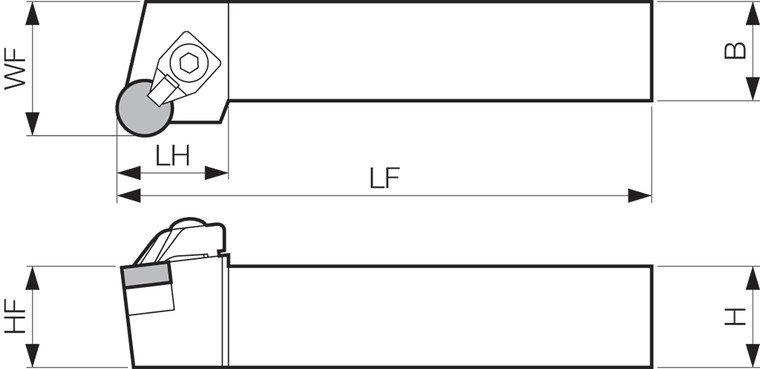

[H] Shank Height (mm):
25.00
[B] Shank Width (mm):
25.00
Coolant Through (Yes/No):
No
Insert Holding Method:
Top Clamp
Unit (inch/mm):
mm
Feature 1:
Right-Hand Toolholder
Feature 2:
Application: External Turning, Facing
Feature 3:
Top Clamp Insert Holding Design
Feature 4:
Compatible with Right-Hand RNM32… Style Inserts
Feature 5:
Rigid Clamping; Negative Insert: Medium to Heavy Machining (Mainly for Ceramic Inserts); Positive Insert: Low Cutting Force
ANSI Part Number:
CRSNR2525M09A
ISO Part Number:
CRSNR2525M-09A
US Stock:
0
Worldwide Stock:
1
Compatible Inserts (Partial):
RNM32…
Old Material Number:
8817434
Clamp Set:
CE-030A
Shim:
SP-829*
Shim Screw:
HH3X12
Wrench (for Clamp Screw):
LW-4
[LF] Functional Length (mm):
150.00
[LH] Head Length (mm):
26.00
Product Notes 1:
*If using RN…33 Ceramic inserts, use SP-826 shim (sold separately).
[H] Shank Height (Decimal Inch):
0.9843
[B] Shank Width (Decimal Inch):
0.9843
[LF] Functional Length (Decimal Inch):
5.9055
[LH] Head Length (Decimal Inch):
1.0236
