CS82362, Indexable Countersink

CS82362, Indexable Countersink

SKU:
OTM86139
$183.34
(No reviews yet)
Width:
1.50 (in)
Height:
1.50 (in)
Depth:
4.00 (in)
Current Stock:
Adding to cart… The item has been added
Description
CS82362, 1.0730" Max Cutting Diameter, 3/4" Shank Diameter, 1-1/4" Usable Length, 82 Degree, Indexable Countersink
Additional Information
Tool Style:
CS
Material:
Steel
Application:
Countersinking
Hand:
Right-Hand

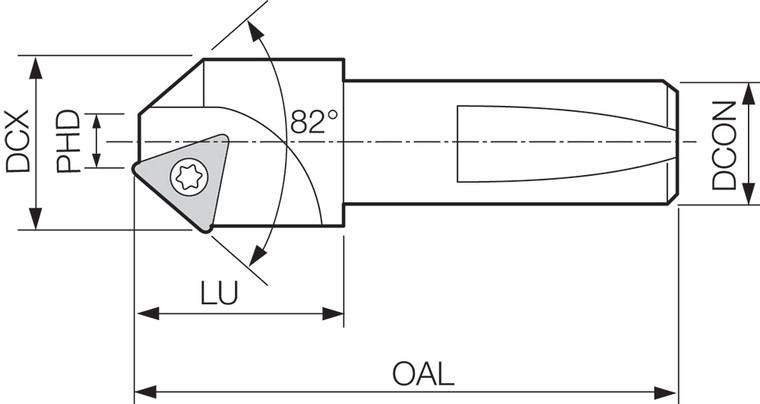

[DCX] Cutting Diameter Maximum (mm):
27.25
[LU] Usable Length (mm):
31.75
Number of Inserts:
1
Number of Flutes:
1
Shank Type:
Standard Length
Weldon Flat:
No
[DCON] Connection Diameter (mm):
19.05
Coolant Through (Yes/No):
No
Insert Holding Method:
Screw
Unit (inch/mm):
inch
Feature 1:
Countersink For Flat Head Cap Screw Sizes 3/8", 7/16", 1/2"
Feature 2:
For use with TCMT 3252 Insert
ANSI Part Number:
CS82362
ISO Part Number:
CS82362
US Stock:
10
Worldwide Stock:
0
Compatible Inserts (Partial):
TCMT3252
Old Material Number:
8600745
Insert Screw:
SCR-02
Wrench (for Insert Screw):
FT-15
[EPSR] Insert Included Angle (Degree):
82
[DC] Cutting Diameter (Decimal Inch):
1.0728 - 1.0728
[DC] Cutting Diameter (mm):
27.25 - 27.25
[DCX] Cutting Diameter Maximum (Decimal Inch):
1.0728
[LU] Usable Length (Decimal Inch):
1.2500
[DCON] Connection Diameter (Decimal Inch):
0.7500
[OAL] Overall Length (mm):
83.31
[OAL] Overall Length (Decimal Inch):
3.2799
