CSRNR 3225P15, Indexable Turning Toolholder

CSRNR 3225P15, Indexable Turning Toolholder

SKU:
THC01910
|
UPC:
4960664006083
$208.83
(No reviews yet)
Width:
1.97 (in)
Height:
1.97 (in)
Depth:
14.17 (in)
Current Stock:
Adding to cart… The item has been added
Description
CSRNR 3225P15, Right-Hand, Negative Rake, 75 Degree Lead Angle, Indexable Turning Toolholder for External Turning Applications
Additional Information
Tool Style:
CSRN
Material:
Steel
Application:
External Turning
Hand:
Right-Hand
Rake:
Negative
[KAPR] Tool Entering Angle (Degree):
75
Insert Shape:
90 Degree Square
[H] Shank Height (mm):
32.00
[B] Shank Width (mm):
25.00
Coolant Through (Yes/No):
No
Insert Holding Method:
Top Clamp
Unit (inch/mm):
mm
Feature 1:
Right-Hand Toolholder
Feature 2:
Application: External Turning
Feature 3:
Top Clamp Insert Holding Design
Feature 4:
Compatible with Right-Hand SNG55… Style Inserts
Feature 5:
Rigid Clamping; Negative Insert: Medium to Heavy Machining (Mainly for Ceramic Inserts); Positive Insert: Low Cutting Force
ANSI Part Number:
CSRNR3225P15
ISO Part Number:
CSRNR3225P-15
US Stock:
0
Worldwide Stock:
1
Compatible Inserts (Partial):
SNG55…
Old Material Number:
8817478
Clamp Set:
CE-020
Shim:
SP-162
Shim Screw:
M4X10
Chipbreaker Attachment:
CB-51
Wrench (for Clamp Screw):
LW-4

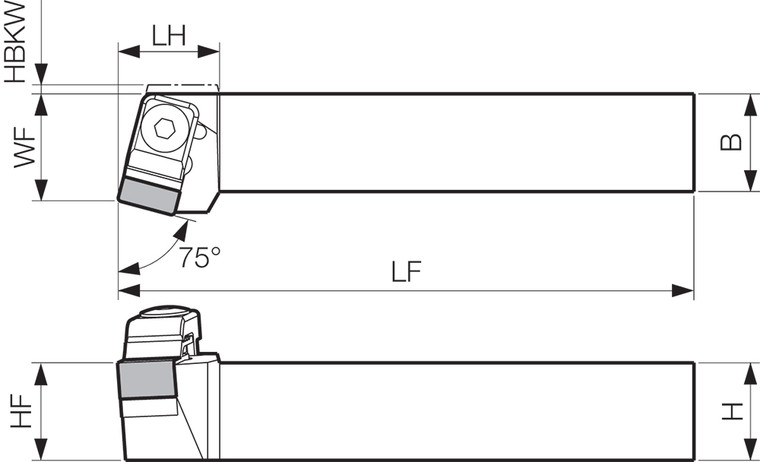

[LF] Functional Length (mm):
170.00
[LH] Head Length (mm):
30.00
[H] Shank Height (Decimal Inch):
1.2598
[B] Shank Width (Decimal Inch):
0.9843
[LF] Functional Length (Decimal Inch):
6.6929
[LH] Head Length (Decimal Inch):
1.1811
