CSSNL 2525M12, Indexable Turning Toolholder

CSSNL 2525M12, Indexable Turning Toolholder

SKU:
THC02020
$116.90
(No reviews yet)
Width:
1.97 (in)
Height:
1.73 (in)
Depth:
7.13 (in)
Current Stock:
Adding to cart… The item has been added
Description
CSSNL 2525M12, Left-Hand, Negative Rake, 45 Degree Lead Angle, Indexable Turning Toolholder for External Turning, Facing, Chamfering Applications
Additional Information
Tool Style:
CSSN
Material:
Steel
Application:
Chamfering|External Turning|Facing
Hand:
Left-Hand
Rake:
Negative
[KAPR] Tool Entering Angle (Degree):
45
Insert Shape:
90 Degree Square
[H] Shank Height (mm):
25.00
[B] Shank Width (mm):
25.00
Coolant Through (Yes/No):
No
Insert Holding Method:
Top Clamp
Unit (inch/mm):
mm
Feature 1:
Left-Hand Toolholder
Feature 2:
Application: External Turning, Facing, Chamfering
Feature 3:
Top Clamp Insert Holding Design
Feature 4:
Compatible with Left-Hand SNG45..., SNM45… Style Inserts
Feature 5:
Rigid Clamping
ANSI Part Number:
CSSNL2525M12
ISO Part Number:
CSSNL2525M-12
Compatible Inserts (Partial):
SNG45…, SNM45…
Old Material Number:
8806245
Clamp Set:
CE-020
Shim:
SP-141*
Shim Screw:
M3X8*
Chipbreaker Attachment:
CB-11
Wrench (for Clamp Screw):
LW-4
Product Notes 1:
*Use SP-143 shim and M3X12 shim screw (sold separately) if using SN..43 type inserts with different thickness.

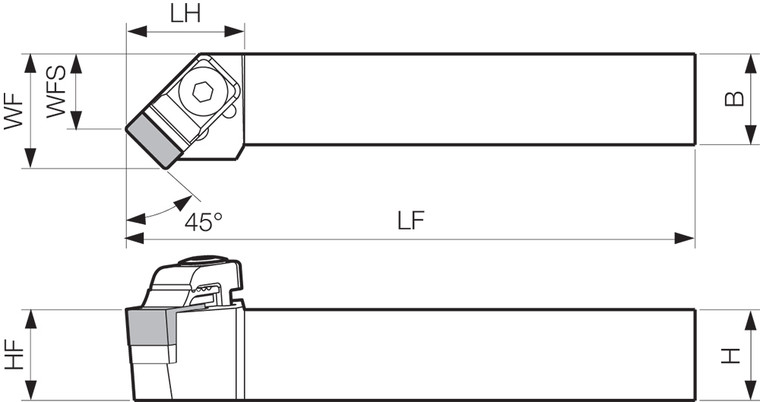

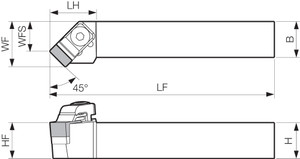

[LF] Functional Length (mm):
150.00
[LH] Head Length (mm):
26.00
[H] Shank Height (Decimal Inch):
0.9843
[B] Shank Width (Decimal Inch):
0.9843
[LF] Functional Length (Decimal Inch):
5.9055
[LH] Head Length (Decimal Inch):
1.0236
