CSSNR 164D, Indexable Turning Toolholder
CSSNR 164D, Right-Hand, Negative Rake, 45 Degree Lead Angle, Indexable Turning Toolholder for External Turning, Facing, Chamfering Applications
- Tool Style:
- CSSN
- Material:
- Steel
- Application:
- Chamfering|External Turning|Facing
- Hand:
- Right-Hand
- Rake:
- Negative
- [KAPR] Tool Entering Angle (Degree):
- 45
- Insert Shape:
- 90 Degree Square
- [H] Shank Height (mm):
- 25.40
- [B] Shank Width (mm):
- 25.40
- Coolant Through (Yes/No):
- No
- Insert Holding Method:
- Top Clamp
- Unit (inch/mm):
- inch
- Feature 1:
- Right-Hand Toolholder
- Feature 2:
- Application: External Turning, Facing, Chamfering
- Feature 3:
- Top Clamp Insert Holding Design
- Feature 4:
- Compatible with Right-Hand SNG45..., SNM45… Style Inserts
- Feature 5:
- Rigid Clamping; Negative Insert: Medium to Heavy Machining (Mainly for Ceramic Inserts); Positive Insert: Low Cutting Force
- ANSI Part Number:
- CSSNR164D
- ISO Part Number:
- CSSNR16-4D
- US Stock:
- 2
- Worldwide Stock:
- 0
- Compatible Inserts (Partial):
- SNG45…, SNM45…
- Old Material Number:
- 8820489
- Clamp Set:
- CE-020
- Shim:
- SP-141*
- Shim Screw:
- M3X8*
- Chipbreaker Attachment:
- CB-11
- Wrench (for Clamp Screw):
- LW-4

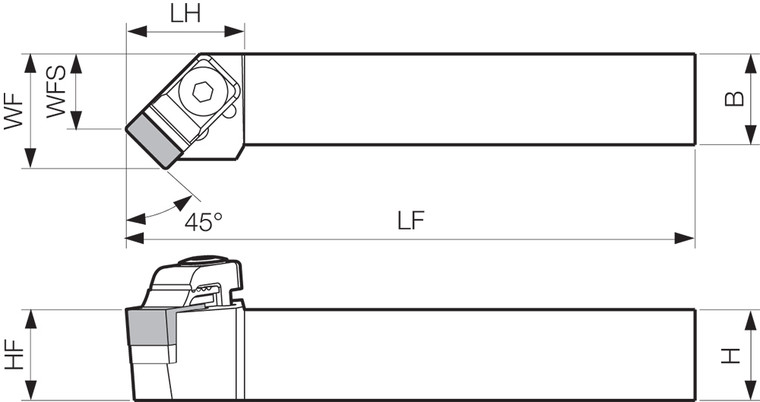

- [LF] Functional Length (mm):
- 152.40
- [LH] Head Length (mm):
- 25.40
- Product Notes 1:
- *Use SP-143 shim and M3X12 shim screw (sold separately) if using SN..43 type inserts with different thickness.
- [H] Shank Height (Decimal Inch):
- 1.0000
- [B] Shank Width (Decimal Inch):
- 1.0000
- [LF] Functional Length (Decimal Inch):
- 6.0000
- [LH] Head Length (Decimal Inch):
- 1.0000
