CTJNL 2020K16, Indexable Turning Toolholder
$103.61
(No reviews yet)
Write a Review
CTJNL 2020K16, Indexable Turning Toolholder
CTJNL 2020K16, Left-Hand, Negative Rake, 93 Degree Lead Angle, Indexable Turning Toolholder for External Turning Applications
- Tool Style:
- CTJN
- Material:
- Steel
- Application:
- External Turning
- Hand:
- Left-Hand
- Rake:
- Negative

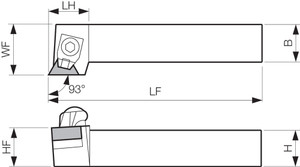

- [KAPR] Tool Entering Angle (Degree):
- 93
- Insert Shape:
- 60 Degree Triangle
- [H] Shank Height (mm):
- 20.00
- [B] Shank Width (mm):
- 20.00
- Coolant Through (Yes/No):
- No
- Insert Holding Method:
- Top Clamp
- Unit (inch/mm):
- mm
- Feature 1:
- Left-Hand Toolholder
- Feature 2:
- Application: External Turning
- Feature 3:
- Top Clamp Insert Holding Design
- Feature 4:
- Compatible with Left-Hand TNG35… Style Inserts
- Feature 5:
- Rigid Clamping; Negative Insert: Medium to Heavy Machining (Mainly for Ceramic Inserts); Positive Insert: Low Cutting Force
- ANSI Part Number:
- CTJNL2020K16
- ISO Part Number:
- CTJNL2020K-16
- US Stock:
- 0
- Worldwide Stock:
- 2
- Compatible Inserts (Partial):
- TNG35…
- Old Material Number:
- 8817521
- Clamp Set:
- CE-020
- Shim:
- SP-221*
- Shim Screw:
- M3X8*
- Chipbreaker Attachment:
- CB-13
- Wrench (for Clamp Screw):
- LW-4
- [LF] Functional Length (mm):
- 125.00
- [LH] Head Length (mm):
- 21.00
- Product Notes 1:
- *Use SP-223 shim and M3X12 shim screw (sold separately) if using TN..33 type inserts with different thickness.
- [H] Shank Height (Decimal Inch):
- 0.7874
- [B] Shank Width (Decimal Inch):
- 0.7874
- [LF] Functional Length (Decimal Inch):
- 4.9213
- [LH] Head Length (Decimal Inch):
- 0.8268
