DA 1040MGM PR1535 Grade PVD Carbide, Replaceable Drill Tip

DA 1040MGM PR1535 Grade PVD Carbide, Replaceable Drill Tip

SKU:
TLC06121
|
UPC:
4960664721351
$121.05
(No reviews yet)
Width:
1.77 (in)
Height:
0.67 (in)
Depth:
2.56 (in)
Current Stock:
Adding to cart… The item has been added
Description
DA 1040MGM PR1535 Grade PVD Carbide, Replaceable Drill Tip with a 0.4094" (10.40mm) Cutting Diameter, General Purpose, Right-Hand Drilling Insert for (P) Steel and (M) Stainless Steel (DRA Magic Drill Series)
Additional Information
Tool Style:
DA
Insert Size:
1040
Chipbreaker:
GM
Insert Grade:
PR1535
Material:
Carbide
Coating Process:
PVD
Application:
Drilling
Hand:
Right-Hand
[DCN] Cutting Diameter Minimum (mm):
10.40
[DCX] Cutting Diameter Maximum (mm):
10.40
Primary Workpiece Material:
(P) Steel|(M) Stainless Steel
Number of Cutting Edges:
2
Insert Holding Method:
Screw
Feature 1:
General Purpose
Feature 2:
Low Cutting Force Design Improves Hole Accuracy
Feature 3:
Optimal Web Thickness Limits Deflection
ANSI Part Number:
DA1040MGMPR1535
ISO Part Number:
DA1040M-GM
US Stock:
183
Worldwide Stock:
41
Old Material Number:
8845825
Compatible Toolholder (Partial):
SS0500-DRA100M..., SF0625-DRA100M..., SS12-DRA100M..., SF16-DRA100M...

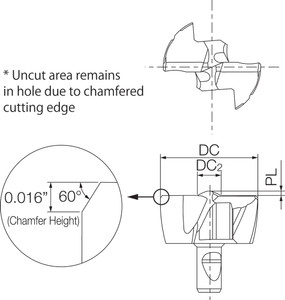

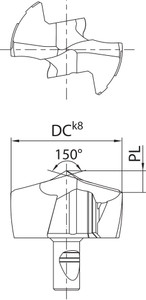

[DC] Cutting Diameter (Decimal Inch):
0.4095
[DC] Cutting Diameter (mm):
10.40
[DCN] Cutting Diameter Minimum (Decimal Inch):
0.4095
[DCX] Cutting Diameter Maximum (Decimal Inch):
0.4095
[PL] Point Length (Decimal Inch):
0.0697
[PL] Point Length (mm):
1.77
