DA 1050MFTP PR1535 Grade PVD Carbide, Replaceable Drill Tip

DA 1050MFTP PR1535 Grade PVD Carbide, Replaceable Drill Tip

SKU:
TLC10145
|
UPC:
4960664843619
$129.09
(No reviews yet)
Width:
1.77 (in)
Height:
0.67 (in)
Depth:
2.56 (in)
Current Stock:
Adding to cart… The item has been added
Description
DA 1050MFTP PR1535 Grade PVD Carbide, Replaceable Drill Tip with a 0.4134" (10.50mm) Cutting Diameter, Flat Bottom / Counterboring, Right-Hand Drilling Insert for (P) Steel and (M) Stainless Steel (DRA Magic Drill Series)
Additional Information
Tool Style:
DA
Insert Size:
1050
Chipbreaker:
FTP
Insert Grade:
PR1535
Material:
Carbide
Coating Process:
PVD
Application:
Drilling
Hand:
Right-Hand
[DCN] Cutting Diameter Minimum (mm):
10.50
[DCX] Cutting Diameter Maximum (mm):
10.50
Primary Workpiece Material:
(P) Steel|(M) Stainless Steel
Number of Cutting Edges:
2
Insert Holding Method:
Screw
Feature 1:
Flat Bottom / Counterboring
Feature 2:
Pilot Point Geometry and Double Margin for Improved Hole Accuracy
Feature 3:
Reduced Burr Formation with Large Helix Angle and Corner Chamfer
Feature 4:
Excellent Chip Evacuation with Large Groove and Cutting Edge Angle for Chip Thinning
ANSI Part Number:
DA1050MFTPPR1535
ISO Part Number:
DA1050M-FTP
US Stock:
5
Worldwide Stock:
96
Old Material Number:
8858893
Compatible Toolholder (Partial):
SS0500-DRA105M..., SF0625-DRA105M..., SS12-DRA105M..., SF16-DRA105M...
[DC] Cutting Diameter (Decimal Inch):
0.4134
[DC] Cutting Diameter (mm):
10.50
[DCN] Cutting Diameter Minimum (Decimal Inch):
0.4134
[DCX] Cutting Diameter Maximum (Decimal Inch):
0.4134

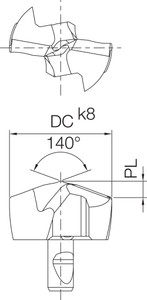

[PL] Point Length (Decimal Inch):
0.0181
[PL] Point Length (mm):
0.46
