DA 1100MHQP PR1525 Grade PVD Carbide, Replaceable Drill Tip

DA 1100MHQP PR1525 Grade PVD Carbide, Replaceable Drill Tip

SKU:
TLB40042
|
UPC:
4960664937523
$162.23
(No reviews yet)
Width:
1.77 (in)
Height:
0.67 (in)
Depth:
2.56 (in)
Current Stock:
Adding to cart… The item has been added
Description
DA 1100MHQP PR1525 Grade PVD Carbide, Replaceable Drill Tip with a 0.4331" (11.00mm) Cutting Diameter, High-precision, Right-Hand Drilling Insert for (P) Steel (DRA Magic Drill Series)
Additional Information
Tool Style:
DA
Insert Size:
1100
Chipbreaker:
HQP
Insert Grade:
PR1525
Material:
Carbide
Coating Process:
PVD
Application:
Drilling
Hand:
Right-Hand
[DCN] Cutting Diameter Minimum (mm):
11.00
[DCX] Cutting Diameter Maximum (mm):
11.00
Primary Workpiece Material:
(P) Steel
Number of Cutting Edges:
2
Insert Holding Method:
Screw
Feature 1:
High-precision Insert for Steel Machining
Feature 2:
Improved Centripetal Forces with Special Two-step Bottom
Feature 3:
Excellent Cylindricity, Roundness and Surface Finish in Steel Machining
Feature 4:
Improved Centripetal Forces Delivers High-precision Machining
Feature 5:
Capabilities for both Machining Centers and Lathes
ANSI Part Number:
DA1100MHQPPR1525
ISO Part Number:
DA1100M-HQP
US Stock:
10
Worldwide Stock:
5
Old Material Number:
8866968
Compatible Toolholder (Partial):
SS0500-DRA105M..., SF0625-DRA105M..., SS12-DRA105M..., SF16-DRA105M...

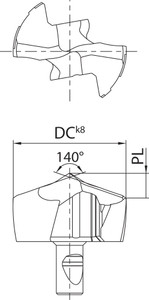

[DC] Cutting Diameter (Decimal Inch):
0.4331
[DC] Cutting Diameter (mm):
11.00
[DCN] Cutting Diameter Minimum (Decimal Inch):
0.4331
[DCX] Cutting Diameter Maximum (Decimal Inch):
0.4331
[PL] Point Length (Decimal Inch):
0.1043
[PL] Point Length (mm):
2.65
