DA 1150MFTP PR1525 Grade PVD Carbide, Replaceable Drill Tip

DA 1150MFTP PR1525 Grade PVD Carbide, Replaceable Drill Tip

SKU:
TLB10160
|
UPC:
4960664843220
$129.09
(No reviews yet)
Width:
1.77 (in)
Height:
0.67 (in)
Depth:
2.56 (in)
Current Stock:
Adding to cart… The item has been added
Description
DA 1150MFTP PR1525 Grade PVD Carbide, Replaceable Drill Tip with a 0.4528" (11.50mm) Cutting Diameter, Flat Bottom / Counterboring, Right-Hand Drilling Insert for (K) Cast Iron (DRA Magic Drill Series)
Additional Information
Tool Style:
DA
Insert Size:
1150
Chipbreaker:
FTP
Insert Grade:
PR1525
Material:
Carbide
Coating Process:
PVD
Application:
Drilling
Hand:
Right-Hand
[DCN] Cutting Diameter Minimum (mm):
11.50
[DCX] Cutting Diameter Maximum (mm):
11.50
Primary Workpiece Material:
(K) Cast Iron
Number of Cutting Edges:
2
Insert Holding Method:
Screw
Feature 1:
Flat Bottom / Counterboring
Feature 2:
Pilot Point Geometry and Double Margin for Improved Hole Accuracy
Feature 3:
Reduced Burr Formation with Large Helix Angle and Corner Chamfer
Feature 4:
Excellent Chip Evacuation with Large Groove and Cutting Edge Angle for Chip Thinning
ANSI Part Number:
DA1150MFTPPR1525
ISO Part Number:
DA1150M-FTP
US Stock:
2
Worldwide Stock:
0
Old Material Number:
8858854
Compatible Toolholder (Partial):
SS0500-DRA115M..., SF0625-DRA115M..., SS12-DRA115M..., SF16-DRA115M...

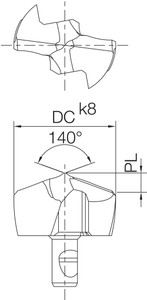

[DC] Cutting Diameter (Decimal Inch):
0.4528
[DC] Cutting Diameter (mm):
11.50
[DCN] Cutting Diameter Minimum (Decimal Inch):
0.4528
[DCX] Cutting Diameter Maximum (Decimal Inch):
0.4528
[PL] Point Length (Decimal Inch):
0.0197
[PL] Point Length (mm):
0.50
