DA 1330MGM PR1525 Grade PVD Carbide, Replaceable Drill Tip

DA 1330MGM PR1525 Grade PVD Carbide, Replaceable Drill Tip

SKU:
TLB06266
|
UPC:
4960664720231
$127.91
(No reviews yet)
Width:
1.77 (in)
Height:
0.67 (in)
Depth:
2.56 (in)
Current Stock:
Adding to cart… The item has been added
Description
DA 1330MGM PR1525 Grade PVD Carbide, Replaceable Drill Tip with a 0.5236" (13.30mm) Cutting Diameter, Right-Hand Drilling Insert for (K) Cast Iron (DRA Magic Drill Series)
Additional Information
Tool Style:
DA
Insert Size:
1330
Chipbreaker:
GM
Insert Grade:
PR1525
Material:
Carbide
Coating Process:
PVD
Application:
Drilling
Hand:
Right-Hand
[DCN] Cutting Diameter Minimum (mm):
13.30
[DCX] Cutting Diameter Maximum (mm):
13.30
Primary Workpiece Material:
(K) Cast Iron
Number of Cutting Edges:
2
Insert Holding Method:
Screw
Feature 1:
General Purpose
Feature 2:
Low Cutting Force Design Improves Hole Accuracy
Feature 3:
Optimal Web Thickness Limits Deflection
ANSI Part Number:
DA1330MGMPR1525
ISO Part Number:
DA1330M-GM
US Stock:
151
Worldwide Stock:
6
Old Material Number:
8845713
Compatible Toolholder (Partial):
SS0625-DRA130M..., SF0625-DRA130M..., SS14-DRA130M..., SF16-DRA130M...

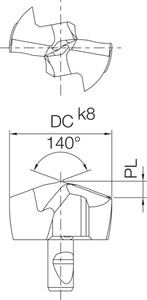

[DC] Cutting Diameter (Decimal Inch):
0.5236
[DC] Cutting Diameter (mm):
13.30
[DCN] Cutting Diameter Minimum (Decimal Inch):
0.5236
[DCX] Cutting Diameter Maximum (Decimal Inch):
0.5236
[PL] Point Length (Decimal Inch):
0.0886
[PL] Point Length (mm):
2.25
