DA 1330MHQP PR1525 Grade PVD Carbide, Replaceable Drill Tip

DA 1330MHQP PR1525 Grade PVD Carbide, Replaceable Drill Tip

SKU:
TLB40065
|
UPC:
4960664937752
$173.04
(No reviews yet)
Width:
1.77 (in)
Height:
0.67 (in)
Depth:
2.56 (in)
Current Stock:
Adding to cart… The item has been added
Description
DA 1330MHQP PR1525 Grade PVD Carbide, Replaceable Drill Tip with a 0.5236" (13.30mm) Cutting Diameter, High-precision, Right-Hand Drilling Insert for (P) Steel (DRA Magic Drill Series)
Additional Information
Tool Style:
DA
Insert Size:
1330
Chipbreaker:
HQP
Insert Grade:
PR1525
Material:
Carbide
Coating Process:
PVD
Application:
Drilling
Hand:
Right-Hand
[DCN] Cutting Diameter Minimum (mm):
13.30
[DCX] Cutting Diameter Maximum (mm):
13.30
Primary Workpiece Material:
(P) Steel
Number of Cutting Edges:
2
Insert Holding Method:
Screw
Feature 1:
High-precision Insert for Steel Machining
Feature 2:
Improved Centripetal Forces with Special Two-step Bottom
Feature 3:
Excellent Cylindricity, Roundness and Surface Finish in Steel Machining
Feature 4:
Improved Centripetal Forces Delivers High-precision Machining
Feature 5:
Capabilities for both Machining Centers and Lathes
ANSI Part Number:
DA1330MHQPPR1525
ISO Part Number:
DA1330M-HQP
US Stock:
2
Worldwide Stock:
8
Old Material Number:
8866991
Compatible Toolholder (Partial):
SS0625-DRA130M..., SF0625-DRA130M..., SS14-DRA130M..., SF16-DRA130M...

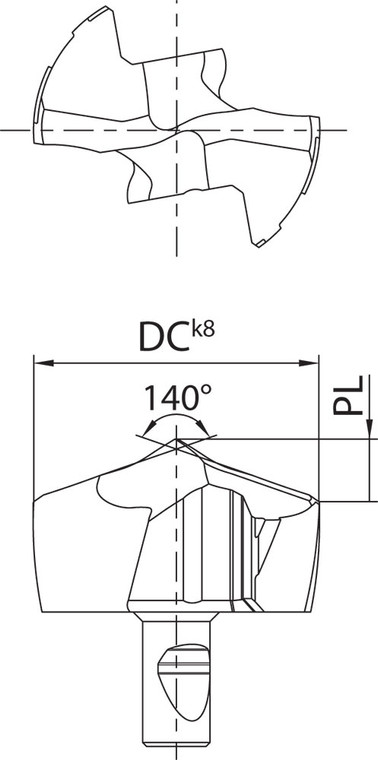

[DC] Cutting Diameter (Decimal Inch):
0.5236
[DC] Cutting Diameter (mm):
13.30
[DCN] Cutting Diameter Minimum (Decimal Inch):
0.5236
[DCX] Cutting Diameter Maximum (Decimal Inch):
0.5236
[PL] Point Length (Decimal Inch):
0.1189
[PL] Point Length (mm):
3.02
