DA 1750MFTP PR1525 Grade PVD Carbide, Replaceable Drill Tip

DA 1750MFTP PR1525 Grade PVD Carbide, Replaceable Drill Tip

SKU:
TLB10225
|
UPC:
4960664843350
$175.55
(No reviews yet)
Width:
1.77 (in)
Height:
1.06 (in)
Depth:
2.56 (in)
Current Stock:
Adding to cart… The item has been added
Description
DA 1750MFTP PR1525 Grade PVD Carbide, Replaceable Drill Tip with a 0.6890" (17.50mm) Cutting Diameter, Flat Bottom / Counterboring, Right-Hand Drilling Insert for (K) Cast Iron (DRA Magic Drill Series)
Additional Information
Tool Style:
DA
Insert Size:
1750
Chipbreaker:
FTP
Insert Grade:
PR1525
Material:
Carbide
Coating Process:
PVD
Application:
Drilling
Hand:
Right-Hand
[DCN] Cutting Diameter Minimum (mm):
17.50
[DCX] Cutting Diameter Maximum (mm):
17.50
Primary Workpiece Material:
(K) Cast Iron
Number of Cutting Edges:
2
Insert Holding Method:
Screw
Feature 1:
Flat Bottom / Counterboring
Feature 2:
Pilot Point Geometry and Double Margin for Improved Hole Accuracy
Feature 3:
Reduced Burr Formation with Large Helix Angle and Corner Chamfer
Feature 4:
Excellent Chip Evacuation with Large Groove and Cutting Edge Angle for Chip Thinning
ANSI Part Number:
DA1750MFTPPR1525
ISO Part Number:
DA1750M-FTP
US Stock:
9
Worldwide Stock:
23
Old Material Number:
8858867
Compatible Toolholder (Partial):
SS0750-DRA170M..., SF0750-DRA170M..., SS18-DRA170M..., SF20-DRA170M...

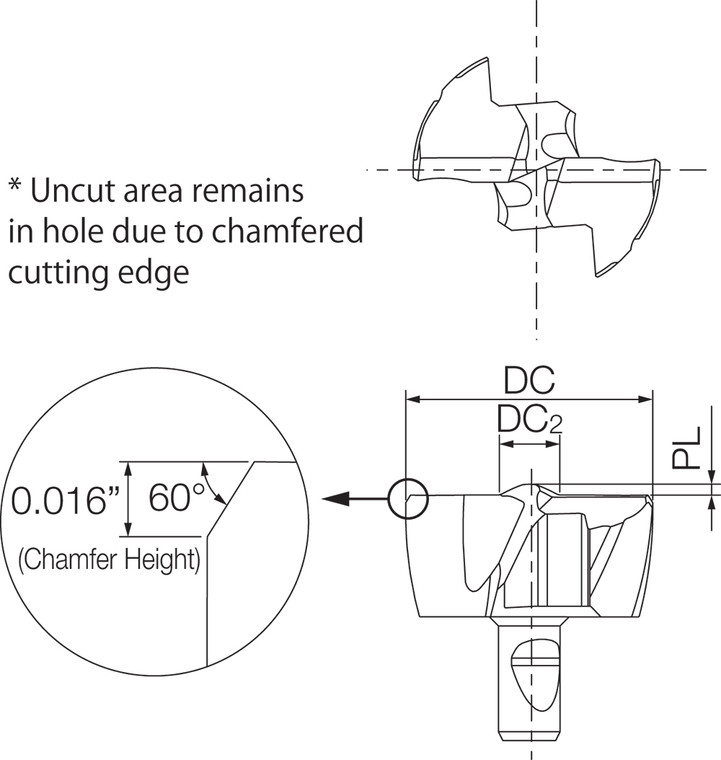

[DC] Cutting Diameter (Decimal Inch):
0.6890
[DC] Cutting Diameter (mm):
17.50
[DCN] Cutting Diameter Minimum (Decimal Inch):
0.6890
[DCX] Cutting Diameter Maximum (Decimal Inch):
0.6890
[PL] Point Length (Decimal Inch):
0.0295
[PL] Point Length (mm):
0.75
