DA 2000MGM PR1525 Grade PVD Carbide, Replaceable Drill Tip

DA 2000MGM PR1525 Grade PVD Carbide, Replaceable Drill Tip

SKU:
TLB06601
|
UPC:
4960664720903
$218.27
(No reviews yet)
Width:
1.77 (in)
Height:
1.06 (in)
Depth:
2.56 (in)
Current Stock:
Adding to cart… The item has been added
Description
DA 2000MGM PR1525 Grade PVD Carbide, Replaceable Drill Tip with a 0.7874" (20.00mm) Cutting Diameter, Right-Hand Drilling Insert for (K) Cast Iron (DRA Magic Drill Series)
Additional Information
Tool Style:
DA
Insert Size:
2000
Chipbreaker:
GM
Insert Grade:
PR1525
Material:
Carbide
Coating Process:
PVD
Application:
Drilling
Hand:
Right-Hand
[DCN] Cutting Diameter Minimum (mm):
20.00
[DCX] Cutting Diameter Maximum (mm):
20.00
Primary Workpiece Material:
(K) Cast Iron
Number of Cutting Edges:
2
Insert Holding Method:
Screw
Feature 1:
General Purpose
Feature 2:
Low Cutting Force Design Improves Hole Accuracy
Feature 3:
Optimal Web Thickness Limits Deflection
ANSI Part Number:
DA2000MGMPR1525
ISO Part Number:
DA2000M-GM
US Stock:
5
Worldwide Stock:
94
Old Material Number:
8845780
Compatible Toolholder (Partial):
SS1000-DRA200M..., SF1000-DRA200M..., SS25-DRA200M..., SF25-DRA200M...
[DC] Cutting Diameter (Decimal Inch):
0.7874
[DC] Cutting Diameter (mm):
20.00
[DCN] Cutting Diameter Minimum (Decimal Inch):
0.7874
[DCX] Cutting Diameter Maximum (Decimal Inch):
0.7874

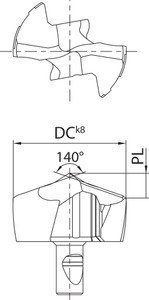

[PL] Point Length (Decimal Inch):
0.1327
[PL] Point Length (mm):
3.37
