DC 1320MSC PR0315 Grade PVD Carbide, Replaceable Drill Tip

DC 1320MSC PR0315 Grade PVD Carbide, Replaceable Drill Tip

SKU:
TKK00905
$191.33
(No reviews yet)
Width:
1.77 (in)
Height:
0.67 (in)
Depth:
2.56 (in)
Current Stock:
Adding to cart… The item has been added
Description
DC 1320MSC PR0315 Grade PVD Carbide, Replaceable Drill Tip with a 0.5197" (13.20mm) Cutting Diameter, Right-Hand Drilling Insert for (P) Carbon/Alloy Steel and (K) Cast Iron (DRC Magic Drill Series)
Additional Information
Tool Style:
DC
Insert Size:
1320
Chipbreaker:
M-SC
Insert Grade:
PR0315
Material:
Carbide
Coating Process:
PVD
Application:
Drilling
Hand:
Right-Hand
[DCN] Cutting Diameter Minimum (mm):
13.20
[DCX] Cutting Diameter Maximum (mm):
13.20
Primary Workpiece Material:
(P) Carbon/Alloy Steel|(K) Cast Iron
Number of Cutting Edges:
2
Insert Holding Method:
Screw
Feature 1:
Tough Super Micro Grain Carbide Grade with TiAlN Coating
Feature 2:
Excellent Wear and Fracture Resistance
Feature 3:
Maintains Stable Machining of Carbon Steel, Alloy Steel and Cast Iron
ANSI Part Number:
DC1320MSCPR0315
ISO Part Number:
DC1320M-SC
Old Material Number:
8827800
Compatible Toolholder (Partial):
SS14-DRC130M..., SF16-DRC130M...

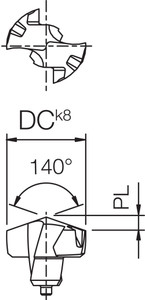

[DC] Cutting Diameter (Decimal Inch):
0.5197
[DC] Cutting Diameter (mm):
13.20
[DCN] Cutting Diameter Minimum (Decimal Inch):
0.5197
[DCX] Cutting Diameter Maximum (Decimal Inch):
0.5197
[PL] Point Length (Decimal Inch):
0.0898
[PL] Point Length (mm):
2.28
