DC 1580MSC PR0315 Grade PVD Carbide, Replaceable Drill Tip

DC 1580MSC PR0315 Grade PVD Carbide, Replaceable Drill Tip

SKU:
TKK00958
|
UPC:
4960664517329
$202.62
(No reviews yet)
Width:
1.77 (in)
Height:
1.06 (in)
Depth:
2.56 (in)
Current Stock:
Adding to cart… The item has been added
Description
DC 1580MSC PR0315 Grade PVD Carbide, Replaceable Drill Tip with a 0.6220" (15.80mm) Cutting Diameter, Right-Hand Drilling Insert for (P) Carbon/Alloy Steel and (K) Cast Iron (DRC Magic Drill Series)
Additional Information
Tool Style:
DC
Insert Size:
1580
Chipbreaker:
M-SC
Insert Grade:
PR0315
Material:
Carbide
Coating Process:
PVD
Application:
Drilling
Hand:
Right-Hand
[DCN] Cutting Diameter Minimum (mm):
15.80
[DCX] Cutting Diameter Maximum (mm):
15.80
Primary Workpiece Material:
(P) Carbon/Alloy Steel|(K) Cast Iron
Number of Cutting Edges:
2
Insert Holding Method:
Screw
Feature 1:
Tough Super Micro Grain Carbide Grade with TiAlN Coating
Feature 2:
Excellent Wear and Fracture Resistance
Feature 3:
Maintains Stable Machining of Carbon Steel, Alloy Steel and Cast Iron
ANSI Part Number:
DC1580MSCPR0315
ISO Part Number:
DC1580M-SC
US Stock:
0
Worldwide Stock:
36
Old Material Number:
8827826
Compatible Toolholder (Partial):
SS16-DRC150M..., SF20-DRC150M...
[DC] Cutting Diameter (Decimal Inch):
0.6221
[DC] Cutting Diameter (mm):
15.80
[DCN] Cutting Diameter Minimum (Decimal Inch):
0.6221
[DCX] Cutting Diameter Maximum (Decimal Inch):
0.6221

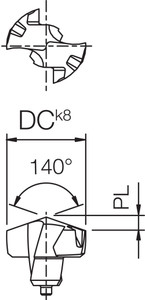

[PL] Point Length (Decimal Inch):
0.1075
[PL] Point Length (mm):
2.73
