DC 1980MSC PR0315 Grade PVD Carbide, Replaceable Drill Tip

DC 1980MSC PR0315 Grade PVD Carbide, Replaceable Drill Tip

SKU:
TKK01041
$288.20
(No reviews yet)
Width:
1.77 (in)
Height:
1.06 (in)
Depth:
2.56 (in)
Current Stock:
Adding to cart… The item has been added
Description
DC 1980MSC PR0315 Grade PVD Carbide, Replaceable Drill Tip with a 0.7795" (19.80mm) Cutting Diameter, Right-Hand Drilling Insert for (P) Carbon/Alloy Steel and (K) Cast Iron (DRC Magic Drill Series)
Additional Information
Tool Style:
DC
Insert Size:
1980
Chipbreaker:
M-SC
Insert Grade:
PR0315
Material:
Carbide
Coating Process:
PVD
Application:
Drilling
Hand:
Right-Hand
[DCN] Cutting Diameter Minimum (mm):
19.80
[DCX] Cutting Diameter Maximum (mm):
19.80
Primary Workpiece Material:
(P) Carbon/Alloy Steel|(K) Cast Iron
Number of Cutting Edges:
2
Insert Holding Method:
Screw
Feature 1:
Tough Super Micro Grain Carbide Grade with TiAlN Coating
Feature 2:
Excellent Wear and Fracture Resistance
Feature 3:
Maintains Stable Machining of Carbon Steel, Alloy Steel and Cast Iron
ANSI Part Number:
DC1980MSCPR0315
ISO Part Number:
DC1980M-SC
Old Material Number:
8827864
Compatible Toolholder (Partial):
SS20-DRC190M..., SF25-DRC190M...

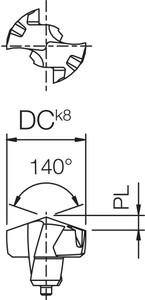

[DC] Cutting Diameter (Decimal Inch):
0.7795
[DC] Cutting Diameter (mm):
19.80
[DCN] Cutting Diameter Minimum (Decimal Inch):
0.7795
[DCX] Cutting Diameter Maximum (Decimal Inch):
0.7795
[PL] Point Length (Decimal Inch):
0.1347
[PL] Point Length (mm):
3.42
