DCLNR 2020K12, Indexable Turning Toolholder
$94.05
(No reviews yet)
Write a Review
DCLNR 2020K12, Indexable Turning Toolholder
DCLNR 2020K12, Right-Hand, Negative Rake, 95 Degree Lead Angle, Indexable Turning Toolholder for External Turning, Facing Applications
- Tool Style:
- DCLN
- Material:
- Steel
- Application:
- External Turning|Facing
- Hand:
- Right-Hand
- Rake:
- Negative
- [KAPR] Tool Entering Angle (Degree):
- 95
- Insert Shape:
- 80 Degree Diamond

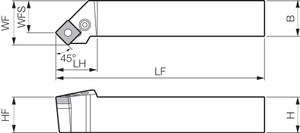

- [H] Shank Height (mm):
- 20.00
- [B] Shank Width (mm):
- 20.00
- Coolant Through (Yes/No):
- No
- Insert Holding Method:
- Double Clamp
- Unit (inch/mm):
- mm
- Feature 1:
- Right-Hand Toolholder
- Feature 2:
- Application: External Turning, Facing
- Feature 3:
- Double Clamp Insert Holding Design
- Feature 4:
- Compatible with Right-Hand CNMG43…, CNMM43…, CNGG43…, CNMA43…, CNGA43… Style Inserts
- Feature 5:
- Firmly Clamps the Insert in Two Directions with One Action
- ANSI Part Number:
- DCLNR2020K12
- ISO Part Number:
- DCLNR2020K-12
- US Stock:
- 11
- Worldwide Stock:
- 29
- Compatible Inserts (Partial):
- CNMG43…, CNMM43…, CNGG43…, CNMA43…, CNGA43…
- Old Material Number:
- 8828479
- Clamp:
- CP-3D
- Clamp Screw:
- CS-3D
- Shim:
- DC-44*
- Shim Screw:
- SB-4085TR
- Spring:
- SP-3D
- Wrench (for Clamp Screw):
- LW-3
- Wrench (for Shim Screw):
- FT-15 (Sold Separately)
- [LF] Functional Length (mm):
- 125.00
- [LH] Head Length (mm):
- 33.00
- Product Notes 1:
- *O-ring SS-035 for pipe connection is also available but sold separately.
- Product Notes 2:
- When using inserts with a corner-R (RE) greater than 1/16", additional modifications of the shim are necessary to prevent workpiece and shim from interfering with each other.
- Product Notes 3:
- Use DC-44-C (sold separately) if using SX chipbreaker inserts.
- [H] Shank Height (Decimal Inch):
- 0.7874
- [B] Shank Width (Decimal Inch):
- 0.7874
- [LF] Functional Length (Decimal Inch):
- 4.9213
- [LH] Head Length (Decimal Inch):
- 1.2992
