DCMW 32505S00435MET KBN35M Grade Honeycomb CBN, Indexable Turning Insert
$70.88
(No reviews yet)
Write a Review
DCMW 32505S00435MET KBN35M Grade Honeycomb CBN, Indexable Turning Insert
DCMW 32505S00435MET KBN35M Grade Honeycomb CBN, 7 Degree, Diamond, Positive Rake Angle, Neutral Turning Insert for Heavy Interruption and Roughing in (H) Hardened Materials
- Tool Style:
- DCMW
- Insert Size:
- 32505
- Insert Grade:
- KBN35M
- Material:
- Honeycomb CBN
- Coating Process:
- PVD

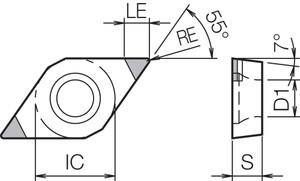

- [IC] Inscribed Circle (mm):
- 9.525
- [S] Thickness (mm):
- 3.97
- [RE] Corner Radius (mm):
- 0.20
- Application:
- Back Boring|Copying|External Turning
- Hand:
- Neutral
- Rake:
- Positive
- [EPSR] Insert Included Angle (Degree):
- 55
- Primary Workpiece Material:
- (H) Hardened Materials
- Insert Shape:
- 55 Degree Diamond
- Number of Cutting Edges:
- 2
- Usage Classification:
- Heavy Interruption
- Cutting Range:
- Roughing
- Insert Holding Method:
- Screw or Clamp
- Feature 1:
- Insert for External Turning, Copying, Back Boring
- Feature 2:
- Multi-Edge / Tough with 2 Cutting Edges
- Feature 3:
- Honeycomb structure CBN composite material consisting of wear resistant CBN (core) and tough CBN (shell)
- Feature 4:
- Heat-resistant MEGACOAT on tough Honeycomb structure CBN
- Feature 5:
- Application: Stable machining of hardened steel at interrupted machining
- ANSI Part Number:
- DCMW32505S00435METKBN35M
- ISO Part Number:
- DCMW11T302S01035MET
- US Stock:
- 0
- Worldwide Stock:
- 1
- Old Material Number:
- 8828773
- Compatible Toolholder (Partial):
- Please Refer to Catalog for Compatible Toolholders
- [IC] Inscribed Circle:
- 3/8"
- [S] Thickness:
- 5/32"
- [RE] Corner Radius:
- 0.008"
- [LE] CBN/PCD Tip Length (Decimal Inch):
- 0.0748
- [LE] CBN/PCD Tip Length (mm):
- 1.90
